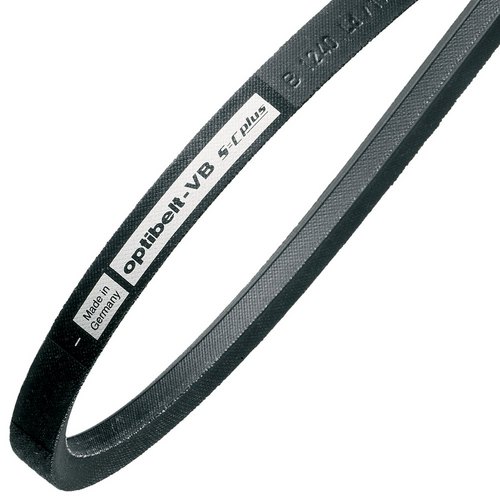

Optibelt - Classical Profile V-Belt

Profile sizes and Length range
5	200 - 610 mm
Y/6	295 - 865 mm
8	335 - 1270 mm
Z/10	312 - 2522 mm
A/13	437 - 5030 mm
B/17	610 - 7140 mm
20	950 - 6050 mm
C/22	1148 - 8058 mm
25	1460 - 9060 mm
D/32	2075 - 11275 mm
E/40	3080 - 12580 mm

Features for improved performance

S=C Plus
Length tolerances closer than matched-sets, regardless of the date manufactured.

INCREASED LIFE
Rubber impregnated fabric wrap is bonded with the belt’s core for superior durability.

TEMPERATURE RANGE
Recommended operational range: -40 to 158°F.

ANTI-STATIC
Meets ISO 1813 requirements for being anti-static.

Simply add items to your cart, select a distributor, and enter your information. The selected distributor will contact you with pricing, and/or complete your order.

Profile

Inside Length (mm) Inside Length (in)

View cart (0)

Part #	Datum Length (mm)	Inside Length (mm)	Section Width	Section Height
10X290	312	290	10	6
10X315	337	315	10	6
10X375	397	375	10	6
10X400	422	400	10	6
10X425	447	425	10	6
10X450	472	450	10	6
10X475	497	475	10	6
10X480	502	480	10	6
10X500	522	500	10	6
10X515	537	515	10	6
10X525	547	525	10	6
10X530	552	530	10	6
10X540	562	540	10	6
10X560	582	560	10	6
10X575	597	575	10	6
10X600	622	600	10	6
10X630	652	630	10	6
10X650	672	650	10	6
10X670	692	670	10	6
10X700	722	700	10	6
10X710	732	710	10	6
10X725	747	725	10	6
10X730	752	730	10	6
10X750	772	750	10	6
10X765	787	765	10	6
10X775	797	775	10	6
10X800	822	800	10	6
10X820	842	820	10	6
10X825	847	825	10	6
10X850	872	850	10	6
10X865	887	865	10	6
10X875	897	875	10	6
10X900	922	900	10	6
10X925	947	925	10	6
10X950	972	950	10	6
10X975	997	975	10	6
10X1000	1022	1000	10	6
10X1016	1038	1016	10	6
10X1030	1052	1030	10	6
10X1041	1063	1041	10	6
10X1050	1072	1050	10	6
10X1060	1082	1060	10	6
10X1080	1102	1080	10	6
10X1100	1122	1100	10	6
10X1120	1142	1120	10	6
10X1150	1172	1150	10	6
10X1165	1187	1165	10	6
10X1180	1202	1180	10	6
10X1194	1216	1194	10	6
10X1215	1237	1215	10	6
10X1225	1247	1225	10	6
10X1250	1272	1250	10	6
10X1270	1292	1270	10	6
10X1295	1317	1295	10	6
10X1320	1342	1320	10	6
10X1346	1368	1346	10	6
10X1371	1393	1371	10	6
10X1400	1422	1400	10	6
10X1422	1444	1422	10	6
10X1450	1472	1450	10	6
10X1475	1497	1475	10	6
10X1500	1522	1500	10	6
10X1524	1546	1524	10	6
10X1550	1572	1550	10	6
10X1575	1597	1575	10	6
10X1600	1622	1600	10	6
10X1626	1648	1626	10	6
10X1651	1673	1651	10	6
10X1675	1697	1675	10	6
10X1700	1722	1700	10	6
10X1725	1747	1725	10	6
10X1750	1772	1750	10	6
10X1775	1797	1775	10	6
10X1800	1822	1800	10	6
10X1850	1872	1850	10	6
10X1900	1922	1900	10	6
10X1975	1997	1975	10	6
10X2000	2022	2000	10	6
10X2120	2142	2120	10	6
10X2240	2262	2240	10	6
10X2360	2382	2360	10	6
10X2500	2522	2500	10	6

Part #	Datum Length (mm)	Inside Length (mm)	Section Width	Section Height
5X190	201	190	5	3
5X229	240	229	5	3
5X260	271	260	5	3
5X280	291	280	5	3
5X300	311	300	5	3
5X315	326	315	5	3
5X322	333	322	5	3
5X335	346	335	5	3
5X375	386	375	5	3
5X425	436	425	5	3
5X475	486	475	5	3
5X500	511	500	5	3
5X530	541	530	5	3
5X554	565	554	5	3
5X600	611	600	5	3

Part #	Datum Length (mm)	Inside Length (mm)	Section Width	Section Height
6X280	295	280	6	4
6X300	315	300	6	4
6X335	350	335	6	4
6X400	415	400	6	4
6X425	440	425	6	4
6X450	465	450	6	4
6X500	515	500	6	4
6X540	555	540	6	4
6X600	615	600	6	4
6X850	865	850	6	4

Part #	Datum Length (mm)	Inside Length (mm)	Section Width	Section Height
8X315	334	315	8	5
8X355	374	355	8	5
8X400	419	400	8	5
8X425	444	425	8	5
8X450	469	450	8	5
8X475	494	475	8	5
8X490	509	490	8	5
8X530	549	530	8	5
8X560	579	560	8	5
8X575	594	575	8	5
8X600	619	600	8	5
8X630	649	630	8	5
8X670	689	670	8	5
8X700	719	700	8	5
8X710	729	710	8	5
8X750	769	750	8	5
8X775	794	775	8	5
8X800	819	800	8	5
8X825	844	825	8	5
8X850	869	850	8	5
8X875	894	875	8	5
8X900	919	900	8	5
8X950	969	950	8	5
8X1000	1019	1000	8	5
8X1020	1039	1020	8	5
8X1050	1069	1050	8	5
8X1075	1094	1075	8	5
8X1120	1139	1120	8	5
8X1200	1219	1200	8	5
8X1250	1269	1250	8	5

Part #	Outside Length (in)	Datum Length (in)	Inside Length (in)	Section Width	Section Height
A20	22.00	21.30	20.00	1/2	11/32
A21	23.00	22.30	21.00	1/2	11/32
A22	24.00	23.30	22.00	1/2	11/32
A23	25.00	24.30	23.00	1/2	11/32
A24	26.00	25.30	24.00	1/2	11/32
A25	27.00	26.30	25.00	1/2	11/32
A26	28.00	27.30	26.00	1/2	11/32
A27	29.00	28.30	27.00	1/2	11/32
A28	30.00	29.30	28.00	1/2	11/32
A29	31.00	30.30	29.00	1/2	11/32
A30	32.00	31.30	30.00	1/2	11/32
A31	33.00	32.30	31.00	1/2	11/32
A32	34.00	33.30	32.00	1/2	11/32
A33	35.00	34.30	33.00	1/2	11/32
A34	36.00	35.30	34.00	1/2	11/32
A35	37.00	36.30	35.00	1/2	11/32
A36	38.00	37.30	36.00	1/2	11/32
A37	39.00	38.30	37.00	1/2	11/32
A38	40.00	39.30	38.00	1/2	11/32
A39	41.00	40.30	39.00	1/2	11/32
A40	42.00	41.30	40.00	1/2	11/32
A41	43.00	42.30	41.00	1/2	11/32
A42	44.00	43.30	42.00	1/2	11/32
A43	45.00	44.30	43.00	1/2	11/32
A44	46.00	45.30	44.00	1/2	11/32
A45	47.00	46.30	45.00	1/2	11/32
A46	48.00	47.30	46.00	1/2	11/32
A47	49.00	48.30	47.00	1/2	11/32
A48	50.00	49.30	48.00	1/2	11/32
A49	51.00	50.30	49.00	1/2	11/32
A50	52.00	51.30	50.00	1/2	11/32
A51	53.00	52.30	51.00	1/2	11/32
A52	54.00	53.30	52.00	1/2	11/32
A53	55.00	54.30	53.00	1/2	11/32
A54	56.00	55.30	54.00	1/2	11/32
A55	57.00	56.30	55.00	1/2	11/32
A56	58.00	57.30	56.00	1/2	11/32
A57	59.00	58.30	57.00	1/2	11/32
A58	60.00	59.30	58.00	1/2	11/32
A59	61.00	60.30	59.00	1/2	11/32
A60	62.00	61.30	60.00	1/2	11/32
A61	63.00	62.30	61.00	1/2	11/32
A62	64.00	63.30	62.00	1/2	11/32
A63	65.00	64.30	63.00	1/2	11/32
A64	66.00	65.30	64.00	1/2	11/32
A65	67.00	66.30	65.00	1/2	11/32
A66	68.00	67.30	66.00	1/2	11/32
A67	69.00	68.30	67.00	1/2	11/32
A68	70.00	69.30	68.00	1/2	11/32
A69	71.00	70.30	69.00	1/2	11/32
A70	72.00	71.30	70.00	1/2	11/32
A71	73.00	72.30	71.00	1/2	11/32
A72	74.00	73.30	72.00	1/2	11/32
A73	75.00	74.30	73.00	1/2	11/32
A74	76.00	75.30	74.00	1/2	11/32
A75	77.00	76.30	75.00	1/2	11/32
A76	78.00	77.30	76.00	1/2	11/32
A77	79.00	78.30	77.00	1/2	11/32
A78	80.00	79.30	78.00	1/2	11/32
A79	81.00	80.30	79.00	1/2	11/32
A80	82.00	81.30	80.00	1/2	11/32
A81	83.00	82.30	81.00	1/2	11/32
A82	84.00	83.30	82.00	1/2	11/32
A83	85.00	84.30	83.00	1/2	11/32
A84	86.00	85.30	84.00	1/2	11/32
A85	87.00	86.30	85.00	1/2	11/32
A86	88.00	87.30	86.00	1/2	11/32
A87	89.00	88.30	87.00	1/2	11/32
A88	90.00	89.30	88.00	1/2	11/32
A89	91.00	90.30	89.00	1/2	11/32
A90	92.00	91.30	90.00	1/2	11/32
A91	93.00	92.30	91.00	1/2	11/32
A92	94.00	93.30	92.00	1/2	11/32
A93	95.00	94.30	93.00	1/2	11/32
A94	96.00	95.30	94.00	1/2	11/32
A95	97.00	96.30	95.00	1/2	11/32
A96	98.00	97.30	96.00	1/2	11/32
A97	99.00	98.30	97.00	1/2	11/32
A98	100.00	99.30	98.00	1/2	11/32
A99	101.00	100.30	99.00	1/2	11/32
A100	102.00	101.30	100.00	1/2	11/32
A101	103.00	102.30	101.00	1/2	11/32
A102	104.00	103.30	102.00	1/2	11/32
A103	105.00	104.30	103.00	1/2	11/32
A105	107.00	106.30	105.00	1/2	11/32
A110	112.00	111.30	110.00	1/2	11/32
A112	114.00	113.30	112.00	1/2	11/32
A114	116.00	115.30	114.00	1/2	11/32
A118	120.00	119.30	118.00	1/2	11/32
A120	122.00	121.30	120.00	1/2	11/32
A124	126.00	125.30	124.00	1/2	11/32
A125	127.00	126.30	125.00	1/2	11/32
A128	130.00	129.30	128.00	1/2	11/32
A133	135.00	134.30	133.00	1/2	11/32
A136	138.00	137.30	136.00	1/2	11/32
A140	142.00	141.30	140.00	1/2	11/32
A144	146.00	145.30	144.00	1/2	11/32
A155	157.00	156.30	155.00	1/2	11/32
A158	160.00	159.30	158.00	1/2	11/32
A173	175.00	174.30	173.00	1/2	11/32
A180	182.00	181.30	180.00	1/2	11/32

Part #	Outside Length (in)	Datum Length (in)	Inside Length (in)	Section Width	Section Height
B23	26.00	24.80	23.00	21/32	7/16
B24	27.00	25.80	24.00	21/32	7/16
B25	28.00	26.80	25.00	21/32	7/16
B26	29.00	27.80	26.00	21/32	7/16
B27	30.00	28.80	27.00	21/32	7/16
B28	31.00	29.80	28.00	21/32	7/16
B29	32.00	30.80	29.00	21/32	7/16
B30	33.00	31.80	30.00	21/32	7/16
B31	34.00	32.80	31.00	21/32	7/16
B32	35.00	33.80	32.00	21/32	7/16
B33	36.00	34.80	33.00	21/32	7/16
B34	37.00	35.80	34.00	21/32	7/16
B35	38.00	36.80	35.00	21/32	7/16
B36	39.00	37.80	36.00	21/32	7/16
B37	40.00	38.80	37.00	21/32	7/16
B38	41.00	39.80	38.00	21/32	7/16
B39	42.00	40.80	39.00	21/32	7/16
B40	43.00	41.80	40.00	21/32	7/16
B41	44.00	42.80	41.00	21/32	7/16
B42	45.00	43.80	42.00	21/32	7/16
B43	46.00	44.80	43.00	21/32	7/16
B44	47.00	45.80	44.00	21/32	7/16
B45	48.00	46.80	45.00	21/32	7/16
B46	49.00	47.80	46.00	21/32	7/16
B47	50.00	48.80	47.00	21/32	7/16
B48	51.00	49.80	48.00	21/32	7/16
B49	52.00	50.80	49.00	21/32	7/16
B50	53.00	51.80	50.00	21/32	7/16
B51	54.00	52.80	51.00	21/32	7/16
B52	55.00	53.80	52.00	21/32	7/16
B53	56.00	54.80	53.00	21/32	7/16
B54	57.00	55.80	54.00	21/32	7/16
B55	58.00	56.80	55.00	21/32	7/16
B56	59.00	57.80	56.00	21/32	7/16
B57	60.00	58.80	57.00	21/32	7/16
B58	61.00	59.80	58.00	21/32	7/16
B59	62.00	60.80	59.00	21/32	7/16
B60	63.00	61.80	60.00	21/32	7/16
B61	64.00	62.80	61.00	21/32	7/16
B62	65.00	63.80	62.00	21/32	7/16
B63	66.00	64.80	63.00	21/32	7/16
B64	67.00	65.80	64.00	21/32	7/16
B65	68.00	66.80	65.00	21/32	7/16
B66	69.00	67.80	66.00	21/32	7/16
B67	70.00	68.80	67.00	21/32	7/16
B68	71.00	69.80	68.00	21/32	7/16
B69	72.00	70.80	69.00	21/32	7/16
B70	73.00	71.80	70.00	21/32	7/16
B71	74.00	72.80	71.00	21/32	7/16
B72	75.00	73.80	72.00	21/32	7/16
B73	76.00	74.80	73.00	21/32	7/16
B74	77.00	75.80	74.00	21/32	7/16
B75	78.00	76.80	75.00	21/32	7/16
B76	79.00	77.80	76.00	21/32	7/16
B77	80.00	78.80	77.00	21/32	7/16
B78	81.00	79.80	78.00	21/32	7/16
B79	82.00	80.80	79.00	21/32	7/16
B80	83.00	81.80	80.00	21/32	7/16
B81	84.00	82.80	81.00	21/32	7/16
B82	85.00	83.80	82.00	21/32	7/16
B83	86.00	84.80	83.00	21/32	7/16
B84	87.00	85.80	84.00	21/32	7/16
B85	88.00	86.80	85.00	21/32	7/16
B86	89.00	87.80	86.00	21/32	7/16
B87	90.00	88.80	87.00	21/32	7/16
B88	91.00	89.80	88.00	21/32	7/16
B89	92.00	90.80	89.00	21/32	7/16
B90	93.00	91.80	90.00	21/32	7/16
B91	94.00	92.80	91.00	21/32	7/16
B92	95.00	93.80	92.00	21/32	7/16
B93	96.00	94.80	93.00	21/32	7/16
B94	97.00	95.80	94.00	21/32	7/16
B95	98.00	96.80	95.00	21/32	7/16
B96	99.00	97.80	96.00	21/32	7/16
B97	100.00	98.80	97.00	21/32	7/16
B98	101.00	99.80	98.00	21/32	7/16
B99	102.00	100.80	99.00	21/32	7/16
B100	103.00	101.80	100.00	21/32	7/16
B101	104.00	102.80	101.00	21/32	7/16
B102	105.00	103.80	102.00	21/32	7/16
B103	106.00	104.80	103.00	21/32	7/16
B104	107.00	105.80	104.00	21/32	7/16
B105	108.00	106.80	105.00	21/32	7/16
B106	109.00	107.80	106.00	21/32	7/16
B107	110.00	108.80	107.00	21/32	7/16
B108	111.00	109.80	108.00	21/32	7/16
B109	112.00	110.80	109.00	21/32	7/16
B110	113.00	111.80	110.00	21/32	7/16
B111	114.00	112.80	111.00	21/32	7/16
B112	115.00	113.80	112.00	21/32	7/16
B113	116.00	114.80	113.00	21/32	7/16
B114	117.00	115.80	114.00	21/32	7/16
B115	118.00	116.80	115.00	21/32	7/16
B116	119.00	117.80	116.00	21/32	7/16
B118	121.00	119.80	118.00	21/32	7/16
B120	123.00	121.80	120.00	21/32	7/16
B122	125.00	123.80	122.00	21/32	7/16
B123	126.00	124.80	123.00	21/32	7/16
B124	127.00	125.80	124.00	21/32	7/16
B126	129.00	127.80	126.00	21/32	7/16
B128	131.00	129.80	128.00	21/32	7/16
B130	133.00	131.80	130.00	21/32	7/16
B131	134.00	132.80	131.00	21/32	7/16
B133	136.00	134.80	133.00	21/32	7/16
B136	139.00	137.80	136.00	21/32	7/16
B138	141.00	139.80	138.00	21/32	7/16
B140	143.00	141.80	140.00	21/32	7/16
B141	144.00	142.80	141.00	21/32	7/16
B142	145.00	143.80	142.00	21/32	7/16
B144	147.00	145.80	144.00	21/32	7/16
B146	149.00	147.80	146.00	21/32	7/16
B148	151.00	149.80	148.00	21/32	7/16
B150	153.00	151.80	150.00	21/32	7/16
B152	155.00	153.80	152.00	21/32	7/16
B153	156.00	154.80	153.00	21/32	7/16
B154	157.00	155.80	154.00	21/32	7/16
B156	159.00	157.80	156.00	21/32	7/16
B158	161.00	159.80	158.00	21/32	7/16
B160	163.00	161.80	160.00	21/32	7/16
B162	165.00	163.80	162.00	21/32	7/16
B173	176.00	174.80	173.00	21/32	7/16
B180	183.00	181.80	180.00	21/32	7/16
B184	187.00	185.80	184.00	21/32	7/16
B188	191.00	189.80	188.00	21/32	7/16
B190	193.00	191.80	190.00	21/32	7/16
B195	198.00	196.80	195.00	21/32	7/16
B199	202.00	200.80	199.00	21/32	7/16
B205	208.00	206.80	205.00	21/32	7/16
B210	213.00	211.80	210.00	21/32	7/16
B221	224.00	221.30	221.00	21/32	7/16
B225	228.00	225.30	225.00	21/32	7/16
B230	233.00	230.30	230.00	21/32	7/16
B236	239.00	236.30	236.00	21/32	7/16
B240	243.00	240.30	240.00	21/32	7/16
B255	258.00	255.30	255.00	21/32	7/16
B270	273.00	270.30	270.00	21/32	7/16
B285	288.00	285.30	285.00	21/32	7/16
B300	303.00	300.30	300.00	21/32	7/16
B315	318.00	315.30	315.00	21/32	7/16
B345	348.00	345.30	345.00	21/32	7/16
B360	363.00	360.30	360.00	21/32	7/16

Part #	Outside Length (in)	Datum Length (in)	Inside Length (in)	Section Width	Section Height
C47	51.00	49.90	47.00	7/8	9/16
C48	52.00	50.90	48.00	7/8	9/16
C49	53.00	51.90	49.00	7/8	9/16
C51	55.00	53.90	51.00	7/8	9/16
C55	59.00	57.90	55.00	7/8	9/16
C57	61.00	59.90	57.00	7/8	9/16
C60	64.00	62.90	60.00	7/8	9/16
C62	66.00	64.90	62.00	7/8	9/16
C64	68.00	66.90	64.00	7/8	9/16
C65	69.00	67.90	65.00	7/8	9/16
C67	71.00	69.90	67.00	7/8	9/16
C68	72.00	70.90	68.00	7/8	9/16
C70	74.00	72.90	70.00	7/8	9/16
C71	75.00	73.90	71.00	7/8	9/16
C72	76.00	74.90	72.00	7/8	9/16
C73	77.00	75.90	73.00	7/8	9/16
C74	78.00	76.90	74.00	7/8	9/16
C75	79.00	77.90	75.00	7/8	9/16
C76	80.00	78.90	76.00	7/8	9/16
C78	82.00	80.90	78.00	7/8	9/16
C79	83.00	81.90	79.00	7/8	9/16
C80	84.00	82.90	80.00	7/8	9/16
C81	85.00	83.90	81.00	7/8	9/16
C82	86.00	84.90	82.00	7/8	9/16
C83	87.00	85.90	83.00	7/8	9/16
C85	89.00	87.90	85.00	7/8	9/16
C86	90.00	88.90	86.00	7/8	9/16
C88	92.00	90.90	88.00	7/8	9/16
C90	94.00	92.90	90.00	7/8	9/16
C92	96.00	94.90	92.00	7/8	9/16
C93	97.00	95.90	93.00	7/8	9/16
C94	98.00	96.90	94.00	7/8	9/16
C96	100.00	98.90	96.00	7/8	9/16
C97	101.00	99.90	97.00	7/8	9/16
C98	102.00	100.90	98.00	7/8	9/16
C99	103.00	101.90	99.00	7/8	9/16
C100	104.00	102.90	100.00	7/8	9/16
C101	105.00	103.90	101.00	7/8	9/16
C103	107.00	105.90	103.00	7/8	9/16
C105	109.00	107.90	105.00	7/8	9/16
C106	110.00	108.90	106.00	7/8	9/16
C107	111.00	109.90	107.00	7/8	9/16
C108	112.00	110.90	108.00	7/8	9/16
C109	113.00	111.90	109.00	7/8	9/16
C110	114.00	112.90	110.00	7/8	9/16
C111	115.00	113.90	111.00	7/8	9/16
C112	116.00	114.90	112.00	7/8	9/16
C114	118.00	116.90	114.00	7/8	9/16
C115	119.00	117.90	115.00	7/8	9/16
C117	121.00	119.90	117.00	7/8	9/16
C120	124.00	122.90	120.00	7/8	9/16
C122	126.00	124.90	122.00	7/8	9/16
C124	128.00	126.90	124.00	7/8	9/16
C126	130.00	128.90	126.00	7/8	9/16
C128	132.00	130.90	128.00	7/8	9/16
C131	135.00	133.90	131.00	7/8	9/16
C132	136.00	134.90	132.00	7/8	9/16
C134	138.00	136.90	134.00	7/8	9/16
C136	140.00	138.90	136.00	7/8	9/16
C140	144.00	142.90	140.00	7/8	9/16
C141	145.00	143.90	141.00	7/8	9/16
C144	148.00	146.90	144.00	7/8	9/16
C147	151.00	149.90	147.00	7/8	9/16
C148	152.00	150.90	148.00	7/8	9/16
C150	154.00	152.90	150.00	7/8	9/16
C151	155.00	153.90	151.00	7/8	9/16
C154	158.00	156.90	154.00	7/8	9/16
C155	159.00	157.90	155.00	7/8	9/16
C156	160.00	158.90	156.00	7/8	9/16
C158	162.00	160.90	158.00	7/8	9/16
C162	166.00	164.90	162.00	7/8	9/16
C163	167.00	165.90	163.00	7/8	9/16
C165	169.00	167.90	165.00	7/8	9/16
C169	173.00	171.90	169.00	7/8	9/16
C170	174.00	172.90	170.00	7/8	9/16
C173	177.00	175.90	173.00	7/8	9/16
C175	179.00	177.90	175.00	7/8	9/16
C177	181.00	179.90	177.00	7/8	9/16
C180	184.00	182.90	180.00	7/8	9/16
C183	187.00	185.90	183.00	7/8	9/16
C185	189.00	187.90	185.00	7/8	9/16
C188	192.00	190.90	188.00	7/8	9/16
C190	194.00	192.90	190.00	7/8	9/16
C195	199.00	197.90	195.00	7/8	9/16
C210	214.00	212.90	210.00	7/8	9/16
C214	218.00	216.90	214.00	7/8	9/16
C221	225.00	223.90	221.00	7/8	9/16
C225	227.00	225.90	225.00	7/8	9/16
C235	239.00	235.90	235.00	7/8	9/16
C240	244.00	240.90	240.00	7/8	9/16
C255	259.00	255.90	255.00	7/8	9/16
C270	274.00	270.90	270.00	7/8	9/16
C285	289.00	285.90	285.00	7/8	9/16
C300	304.00	300.90	300.00	7/8	9/16
C315	319.00	315.90	315.00	7/8	9/16
C330	334.00	330.90	330.00	7/8	9/16
C345	349.00	345.90	345.00	7/8	9/16
C360	364.00	360.90	360.00	7/8	9/16
C390	394.00	390.90	390.00	7/8	9/16

Part #	Outside Length (in)	Datum Length (in)	Inside Length (in)	Section Width	Section Height
D105	110.00	108.30	105.00	1 1/4	3/4
D120	125.00	123.30	120.00	1 1/4	3/4
D128	133.00	131.30	128.00	1 1/4	3/4
D140	145.00	143.30	140.00	1 1/4	3/4
D144	149.00	147.30	144.00	1 1/4	3/4
D158	163.00	161.30	158.00	1 1/4	3/4
D162	167.00	165.30	162.00	1 1/4	3/4
D173	178.00	176.30	173.00	1 1/4	3/4
D180	185.00	183.30	180.00	1 1/4	3/4
D195	200.00	198.30	195.00	1 1/4	3/4
D210	215.00	213.30	210.00	1 1/4	3/4
D225	230.00	225.80	225.00	1 1/4	3/4
D240	245.00	240.80	240.00	1 1/4	3/4
D255	260.00	255.80	255.00	1 1/4	3/4
D270	275.00	270.80	270.00	1 1/4	3/4
D285	290.00	285.80	285.00	1 1/4	3/4
D300	305.00	300.80	300.00	1 1/4	3/4
D315	320.00	315.80	315.00	1 1/4	3/4
D330	335.00	330.80	330.00	1 1/4	3/4
D345	350.00	345.80	345.00	1 1/4	3/4
D360	365.00	360.80	360.00	1 1/4	3/4
D390	395.00	390.80	390.00	1 1/4	3/4
D420	425.00	420.80	420.00	1 1/4	3/4
D450	455.00	450.80	450.00	1 1/4	3/4
D480	485.00	480.80	480.00	1 1/4	3/4
D540	545.00	540.80	540.00	1 1/4	3/4

Part #	Outside Length (in)	Datum Length (in)	Inside Length (in)	Section Width	Section Height
E180	187.00	184.50	180.00	1 1/2	1
E195	202.00	199.50	195.00	1 1/2	1
E210	217.00	214.50	210.00	1 1/2	1
E240	247.00	241.00	240.00	1 1/2	1
E270	277.00	271.00	270.00	1 1/2	1
E300	307.00	301.00	300.00	1 1/2	1
E330	337.00	331.00	330.00	1 1/2	1
E360	367.00	361.00	360.00	1 1/2	1
E390	397.00	391.00	390.00	1 1/2	1
E420	427.00	421.00	420.00	1 1/2	1
E480	487.00	481.00	480.00	1 1/2	1
E540	547.00	541.00	540.00	1 1/2	1
E600	607.00	601.00	600.00	1 1/2	1

Downloads for more information

VB Product Information

pdf

697 KB

Heavy Industry V-Belt Solutions Brochure

pdf

2 MB

HVAC Industry Brochure

pdf

2 MB

Anti-Static Certification

pdf

432 KB

S=C Plus Brochure

pdf

997 KB

Compact Catalogue - Power Transmission

pdf

17 MB

Technical Manual: V-Belts

pdf

7 MB

Product images

Get in contact with us

optibelt NEWSSOURCE

Have the latest information sent to you each month.

Illinois (Headquarters)

1580 W. Stearns Rd.
Bartlett, IL 60103

Phone: 630-628-8400
E-mail: info[at]optibelt-usacom

optibelt VB S=C Plus

V-belts, performance, classical profiles

Construction details

Features for improved performance

S=C Plus
Length tolerances closer than matched-sets, regardless of the date manufactured.

INCREASED LIFE
Rubber impregnated fabric wrap is bonded with the belt’s core for superior durability.

TEMPERATURE RANGE
Recommended operational range: -40 to 158°F.

ANTI-STATIC
Meets ISO 1813 requirements for being anti-static.

Simply add items to your cart, select a distributor, and enter your information. The selected distributor will contact you with pricing, and/or complete your order.

Downloads for more information

Product images

Get in contact with us

optibelt NEWSSOURCE

Follow us or download our APP

Industries

Products

Media Center

The company

© Optibelt GmbH

Contact

Features for improved performance

S=C PlusLength tolerances closer than matched-sets, regardless of the date manufactured.

INCREASED LIFE Rubber impregnated fabric wrap is bonded with the belt’s core for superior durability.

TEMPERATURE RANGE Recommended operational range: -40 to 158°F.

ANTI-STATIC Meets ISO 1813 requirements for being anti-static.

Simply add items to your cart, select a distributor, and enter your information. The selected distributor will contact you with pricing, and/or complete your order.

Downloads for more information

Product images

Get in contact with us

optibelt NEWSSOURCE

Follow us or download our APP

Industries

Products

Media Center

The company

© Optibelt GmbH

Contact

S=C Plus
Length tolerances closer than matched-sets, regardless of the date manufactured.

INCREASED LIFE
Rubber impregnated fabric wrap is bonded with the belt’s core for superior durability.

TEMPERATURE RANGE
Recommended operational range: -40 to 158°F.

ANTI-STATIC
Meets ISO 1813 requirements for being anti-static.
