optibelt SUPER XE-POWER PRO M=S

High performance, EPDM rubber, increase temperature range

optibelt SUPER XE-POWER PRO PLUS M=S

optibelt SUPER XE-POWER PRO M=S is the next revolution in cogged v-belts. It has a redesigned moulded cogged profile which greatly improves durability, flexibility, and dependability.

The high modulus cords allow it to be maintenance free which reduces downtime, improves overall efficiency, and increases the power capacity by up to 20% over other high-performance cogged v-belts. The transverse fiber EPDM rubber gives the belt an operational temperature range of -40°F to 248°F.

Profile sizes and Length range
XPZ	587 – 3556 mm
XPA	707 – 3556 mm
XPB	1250 – 3556 mm
XPC	2000 – 3556 mm
3VX	25 – 140 in
5VX	50 – 140 in

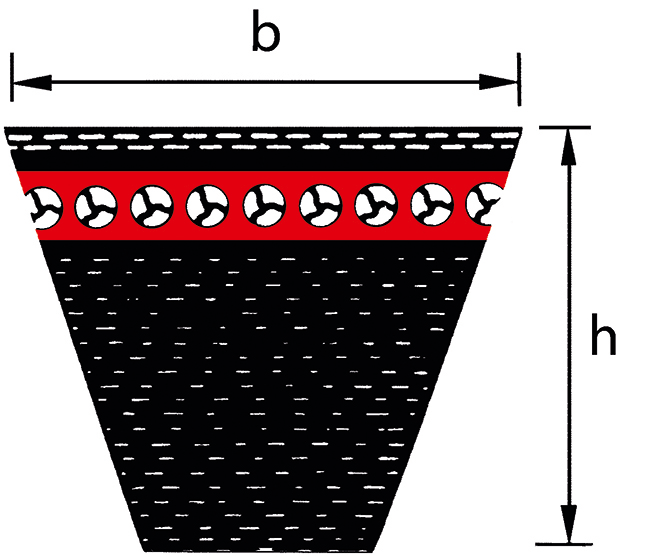

Construction details

Polyester Cord
High-Modulus cords for maintenance-free drives.

Cushion Compound
The red EPDM cushion compound bonds the cords with the core rubber.

Base
Transverse fiber EPDM rubber for additional strength and stability.

Cog
Innovative molded shape maximizes strength and flexibility.

Features for improved performance

Fit for back idlers

Very quiet running even at very high torque levels

M=S Set Constant - can be used in sets without further measurement

Maintenance free

+ 20% power compared to optibelt SUPER X-POWER M=S

Temperature range -40°F to +248°F

Downloads for more information

SUPER XE-POWER PRO M=S Product Information

pdf

1 MB

SUPER XE-POWER PRO M=S Brochure

pdf

1 MB

HVAC Industry Brochure

pdf

2 MB

Anti-Static Certification

pdf

521 KB

Compact Catalogue - Power Transmission

pdf

17 MB

Technical Manual: V-belts

pdf

7 MB
