optibelt KB BLUE POWER

  1. Optibelt USA
  2. Products
  3. V-Belts -Banded

Aramid cord, transverse fiber rubber, 2x fabric wrapped

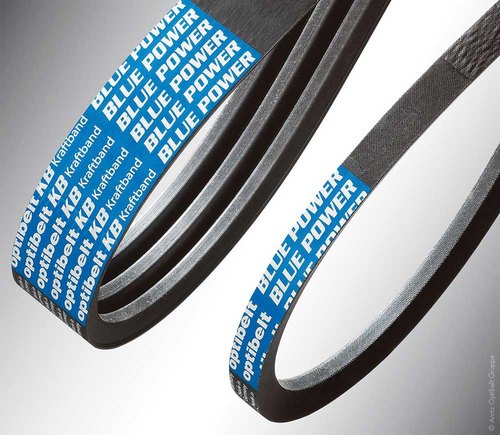

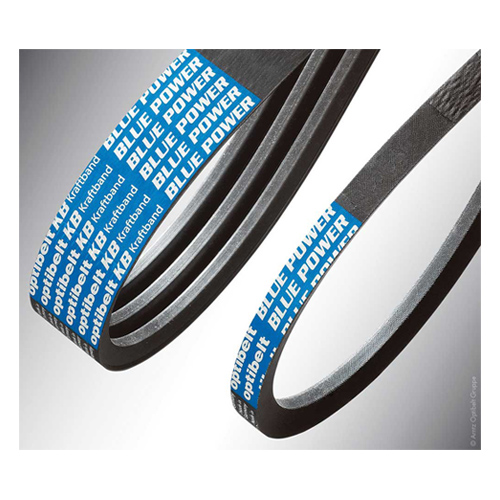

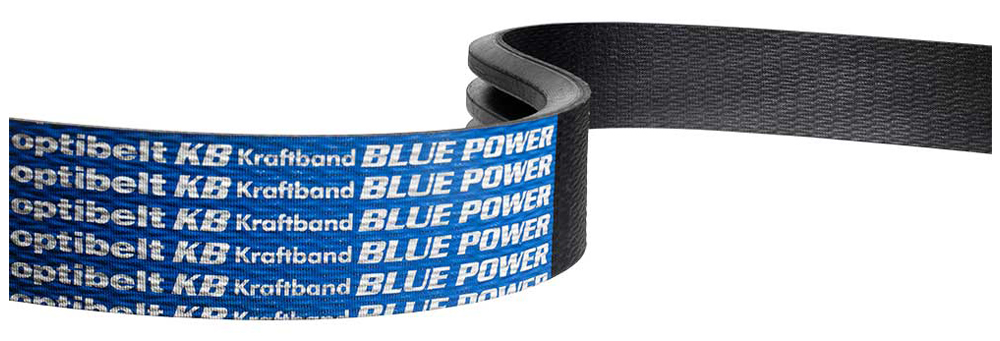

optibelt KB BLUE POWER



The ultimate in power transmission capabilities in heavy industrial applications. The aramid cord gives it more than twice the power transfer capacity of conventional belts. Aramid cord is not the only thing that makes BLUE POWER stand out from other belts. It also features a wrapped cover, aligned fiber core and much more. Also available in single profiles.

Profile sizes and Length range
SPC 2000 - 12000 mm
5V 800 - 4920 in
8V 790 - 8260 in

Features for improved performance

MORE POWER
Aramid cords for 2X more power of conventional v-belts and banded belts for industrial applications or to reduce the size of drives.

ANTI-STATIC
Meets ISO 1813 requirements for being anti-static


INCREASED LIFE
Rubber impregnated fabric wrap is bonded with the belt’s core for superior durability

EFFICIENCY
Fabric wrap and transverse fiber core increases the belts ability to grip

RELIABILITY
Engineered transverse fiber rubber makes the belt stronger for longer


Simply add items to your cart, select a distributor, and enter your information. The selected distributor will contact you with pricing, and/or complete your order.

View cart (0)
Part #Outside Length (in)Outside Length (mm)Inside Length (mm)Inside Length (in)Section WidthSection Height
2/5VBP800 80.002032196177.2035.0015.1
2/5VBP850 85.002159208882.2035.0015.1
2/5VBP900 90.002286221587.2035.0015.1
2/5VBP950 95.002413234292.2035.0015.1
2/5VBP1000 100.002540246997.2035.0015.1
2/5VBP1060 106.0026922621103.2035.0015.1
2/5VBP1120 112.0028452774109.2035.0015.1
2/5VBP1180 118.0029972926115.2035.0015.1
2/5VBP1250 125.0031753104122.2035.0015.1
2/5VBP1320 132.0033533282129.2035.0015.1
2/5VBP1400 140.0035563485137.2035.0015.1
2/5VBP1500 150.0038103739147.2035.0015.1
2/5VBP1600 160.0040643993157.2035.0015.1
2/5VBP1700 170.0043184247167.2035.0015.1
2/5VBP1800 180.0045724501177.2035.0015.1
2/5VBP1900 190.0048264755187.2035.0015.1
2/5VBP2000 200.0050805009197.2035.0015.1
2/5VBP2120 212.0053855314209.2035.0015.1
2/5VBP2240 224.0056905619221.2035.0015.1
2/5VBP2360 236.0059945923233.2035.0015.1
2/5VBP2500 250.0063506279247.2035.0015.1
2/5VBP2650 265.0067316660262.2035.0015.1
2/5VBP2800 280.0071127041277.2035.0015.1
2/5VBP3000 300.0076207549297.2035.0015.1
2/5VBP3150 315.0080017930312.2035.0015.1
3/5VBP800 80.002032196177.2052.5015.1
3/5VBP850 85.002159208882.2052.5015.1
3/5VBP900 90.002286221587.2052.5015.1
3/5VBP950 95.002413234292.2052.5015.1
3/5VBP1000 100.002540246997.2052.5015.1
3/5VBP1060 106.0026922621103.2052.5015.1
3/5VBP1120 112.0028452774109.2052.5015.1
3/5VBP1180 118.0029972926115.2052.5015.1
3/5VBP1250 125.0031753104122.2052.5015.1
3/5VBP1320 132.0033533282129.2052.5015.1
3/5VBP1400 140.0035563485137.2052.5015.1
3/5VBP1500 150.0038103739147.2052.5015.1
3/5VBP1600 160.0040643993157.2052.5015.1
3/5VBP1700 170.0043184247167.2052.5015.1
3/5VBP1800 180.0045724501177.2052.5015.1
3/5VBP1900 190.0048264755187.2052.5015.1
3/5VBP2000 200.0050805009197.2052.5015.1
3/5VBP2120 212.0053855314209.2052.5015.1
3/5VBP2240 224.0056905619221.2052.5015.1
3/5VBP2360 236.0059945923233.2052.5015.1
3/5VBP2500 250.0063506279247.2052.5015.1
3/5VBP2650 265.0067316660262.2052.5015.1
3/5VBP2800 280.0071127041277.2052.5015.1
3/5VBP3000 300.0076207549297.2052.5015.1
3/5VBP3150 315.0080017930312.2052.5015.1
4/5VBP800 80.002032196177.2070.0015.1
4/5VBP850 85.002159208882.2070.0015.1
4/5VBP900 90.002286221587.2070.0015.1
4/5VBP950 95.002413234292.2070.0015.1
4/5VBP1000 100.002540246997.2070.0015.1
4/5VBP1060 106.0026922621103.2070.0015.1
4/5VBP1120 112.0028452774109.2070.0015.1
4/5VBP1180 118.0029972926115.2070.0015.1
4/5VBP1250 125.0031753104122.2070.0015.1
4/5VBP1320 132.0033533282129.2070.0015.1
4/5VBP1400 140.0035563485137.2070.0015.1
4/5VBP1500 150.0038103739147.2070.0015.1
4/5VBP1600 160.0040643993157.2070.0015.1
4/5VBP1700 170.0043184247167.2070.0015.1
4/5VBP1800 180.0045724501177.2070.0015.1
4/5VBP1900 190.0048264755187.2070.0015.1
4/5VBP2000 200.0050805009197.2070.0015.1
4/5VBP2120 212.0053855314209.2070.0015.1
4/5VBP2240 224.0056905619221.2070.0015.1
4/5VBP2360 236.0059945923233.2070.0015.1
4/5VBP2500 250.0063506279247.2070.0015.1
4/5VBP2650 265.0067316660262.2070.0015.1
4/5VBP2800 280.0071127041277.2070.0015.1
4/5VBP3000 300.0076207549297.2070.0015.1
4/5VBP3150 315.0080017930312.2070.0015.1
5/5VBP800 80.002032196177.2087.5015.1
5/5VBP850 85.002159208882.2087.5015.1
5/5VBP900 90.002286221587.2087.5015.1
5/5VBP950 95.002413234292.2087.5015.1
5/5VBP1000 100.002540246997.2087.5015.1
5/5VBP1060 106.0026922621103.2087.5015.1
5/5VBP1120 112.0028452774109.2087.5015.1
5/5VBP1180 118.0029972926115.2087.5015.1
5/5VBP1250 125.0031753104122.2087.5015.1
5/5VBP1320 132.0033533282129.2087.5015.1
5/5VBP1400 140.0035563485137.2087.5015.1
5/5VBP1500 150.0038103739147.2087.5015.1
5/5VBP1600 160.0040643993157.2087.5015.1
5/5VBP1700 170.0043184247167.2087.5015.1
5/5VBP1800 180.0045724501177.2087.5015.1
5/5VBP1900 190.0048264755187.2087.5015.1
5/5VBP2000 200.0050805009197.2087.5015.1
5/5VBP2120 212.0053855314209.2087.5015.1
5/5VBP2240 224.0056905619221.2087.5015.1
5/5VBP2360 236.0059945923233.2087.5015.1
5/5VBP2500 250.0063506279247.2087.5015.1
5/5VBP2650 265.0067316660262.2087.5015.1
5/5VBP2800 280.0071127041277.2087.5015.1
5/5VBP3000 300.0076207549297.2087.5015.1
5/5VBP3150 315.0080017930312.2087.5015.1
Part #Outside Length (in)Outside Length (mm)Inside Length (mm)Inside Length (in)Section WidthSection Height
2/8VBP1000 100.002540242095.2857.2025.5
2/8VBP1060 106.0026922572101.2857.2025.5
2/8VBP1120 112.0028452725107.2857.2025.5
2/8VBP1180 118.0029972877113.2857.2025.5
2/8VBP1250 125.0031753055120.2857.2025.5
2/8VBP1320 132.0033533233127.2857.2025.5
2/8VBP1400 140.0035563436135.2857.2025.5
2/8VBP1500 150.0038103690145.2857.2025.5
2/8VBP1600 160.0040643944155.2857.2025.5
2/8VBP1700 170.0043184198165.2857.2025.5
2/8VBP1800 180.0045724452175.2857.2025.5
2/8VBP1900 190.0048264706185.2857.2025.5
2/8VBP2000 200.0050804960195.2857.2025.5
2/8VBP2120 212.0053855265207.2857.2025.5
2/8VBP2240 224.0056905570219.2857.2025.5
2/8VBP2360 236.0059945874231.2857.2025.5
2/8VBP2500 250.0063506230245.2857.2025.5
2/8VBP2650 265.0067316611260.2857.2025.5
2/8VBP2800 280.0071126992275.2857.2025.5
2/8VBP3000 300.0076207500295.2857.2025.5
2/8VBP3150 315.0080017881310.2857.2025.5
2/8VBP3350 335.0085098389330.2857.2025.5
2/8VBP3550 355.0090178897350.2857.2025.5
2/8VBP3750 375.0095259405370.2857.2025.5
2/8VBP4000 400.001016010040395.2857.2025.5
2/8VBP4250 425.001079510675420.2857.2025.5
2/8VBP4500 450.001143011310445.2857.2025.5
2/8VBP4750 475.001206511945470.2857.2025.5
3/8VBP1000 100.002540242095.2885.8025.5
3/8VBP1060 106.0026922572101.2885.8025.5
3/8VBP1120 112.0028452725107.2885.8025.5
3/8VBP1180 118.0029972877113.2885.8025.5
3/8VBP1250 125.0031753055120.2885.8025.5
3/8VBP1320 132.0033533233127.2885.8025.5
3/8VBP1400 140.0035563436135.2885.8025.5
3/8VBP1500 150.0038103690145.2885.8025.5
3/8VBP1600 160.0040643944155.2885.8025.5
3/8VBP1700 170.0043184198165.2885.8025.5
3/8VBP1800 180.0045724452175.2885.8025.5
3/8VBP1900 190.0048264706185.2885.8025.5
3/8VBP2000 200.0050804960195.2885.8025.5
3/8VBP2120 212.0053855265207.2885.8025.5
3/8VBP2240 224.0056905570219.2885.8025.5
3/8VBP2360 236.0059945874231.2885.8025.5
3/8VBP2500 250.0063506230245.2885.8025.5
3/8VBP2650 265.0067316611260.2885.8025.5
3/8VBP2800 280.0071126992275.2885.8025.5
3/8VBP3000 300.0076207500295.2885.8025.5
3/8VBP3150 315.0080017881310.2885.8025.5
3/8VBP3350 335.0085098389330.2885.8025.5
3/8VBP3550 355.0090178897350.2885.8025.5
3/8VBP3750 375.0095259405370.2885.8025.5
3/8VBP4000 400.001016010040395.2885.8025.5
3/8VBP4250 425.001079510675420.2885.8025.5
3/8VBP4500 450.001143011310445.2885.8025.5
3/8VBP4750 475.001206511945470.2885.8025.5
4/8VBP1000 100.002540242095.28114.4025.5
4/8VBP1060 106.0026922572101.28114.4025.5
4/8VBP1120 112.0028452725107.28114.4025.5
4/8VBP1180 118.0029972877113.28114.4025.5
4/8VBP1250 125.0031753055120.28114.4025.5
4/8VBP1320 132.0033533233127.28114.4025.5
4/8VBP1400 140.0035563436135.28114.4025.5
4/8VBP1500 150.0038103690145.28114.4025.5
4/8VBP1600 160.0040643944155.28114.4025.5
4/8VBP1700 170.0043184198165.28114.4025.5
4/8VBP1800 180.0045724452175.28114.4025.5
4/8VBP1900 190.0048264706185.28114.4025.5
4/8VBP2000 200.0050804960195.28114.4025.5
4/8VBP2120 212.0053855265207.28114.4025.5
4/8VBP2240 224.0056905570219.28114.4025.5
4/8VBP2360 236.0059945874231.28114.4025.5
4/8VBP2500 250.0063506230245.28114.4025.5
4/8VBP2650 265.0067316611260.28114.4025.5
4/8VBP2800 280.0071126992275.28114.4025.5
4/8VBP3000 300.0076207500295.28114.4025.5
4/8VBP3150 315.0080017881310.28114.4025.5
4/8VBP3350 335.0085098389330.28114.4025.5
4/8VBP3550 355.0090178897350.28114.4025.5
4/8VBP3750 375.0095259405370.28114.4025.5
4/8VBP4000 400.001016010040395.28114.4025.5
4/8VBP4250 425.001079510675420.28114.4025.5
4/8VBP4500 450.001143011310445.28114.4025.5
4/8VBP4750 475.001206511945470.28114.4025.5
5/8VBP1000 100.002540242095.28143.0025.5
5/8VBP1060 106.0026922572101.28143.0025.5
5/8VBP1120 112.0028452725107.28143.0025.5
5/8VBP1180 118.0029972877113.28143.0025.5
5/8VBP1250 125.0031753055120.28143.0025.5
5/8VBP1320 132.0033533233127.28143.0025.5
5/8VBP1400 140.0035563436135.28143.0025.5
5/8VBP1500 150.0038103690145.28143.0025.5
5/8VBP1600 160.0040643944155.28143.0025.5
5/8VBP1700 170.0043184198165.28143.0025.5
5/8VBP1800 180.0045724452175.28143.0025.5
5/8VBP1900 190.0048264706185.28143.0025.5
5/8VBP2000 200.0050804960195.28143.0025.5
5/8VBP2120 212.0053855265207.28143.0025.5
5/8VBP2240 224.0056905570219.28143.0025.5
5/8VBP2360 236.0059945874231.28143.0025.5
5/8VBP2500 250.0063506230245.28143.0025.5
5/8VBP2650 265.0067316611260.28143.0025.5
5/8VBP2800 280.0071126992275.28143.0025.5
5/8VBP3000 300.0076207500295.28143.0025.5
5/8VBP3150 315.0080017881310.28143.0025.5
5/8VBP3350 335.0085098389330.28143.0025.5
5/8VBP3550 355.0090178897350.28143.0025.5
5/8VBP3750 375.0095259405370.28143.0025.5
5/8VBP4000 400.001016010040395.28143.0025.5
5/8VBP4250 425.001079510675420.28143.0025.5
5/8VBP4500 450.001143011310445.28143.0025.5
5/8VBP4750 475.001206511945470.28143.0025.5
Part #Outside Length (mm)Datum Length (mm)Inside Length (mm)Section WidthSection Height
2/SPBBP2000 20222000192438.0015.6
2/SPBBP2120 21422120204438.0015.6
2/SPBBP2240 22622240216438.0015.6
2/SPBBP2360 23822360228438.0015.6
2/SPBBP2500 25222500242438.0015.6
2/SPBBP2650 26722650257438.0015.6
2/SPBBP2800 28222800272438.0015.6
2/SPBBP3000 30223000292438.0015.6
2/SPBBP3150 31723150307438.0015.6
2/SPBBP3350 33723350327438.0015.6
2/SPBBP3550 35723550347438.0015.6
2/SPBBP3750 37723750367438.0015.6
2/SPBBP4000 40224000392438.0015.6
2/SPBBP4250 42724250417438.0015.6
2/SPBBP4500 45224500442438.0015.6
2/SPBBP4750 47724750467438.0015.6
2/SPBBP5000 50225000492438.0015.6
2/SPBBP5300 53225300522438.0015.6
2/SPBBP5600 56225600552438.0015.6
2/SPBBP6000 60226000592438.0015.6
2/SPBBP6300 63226300622438.0015.6
2/SPBBP6700 67226700662438.0015.6
2/SPBBP7100 71227100702438.0015.6
2/SPBBP7500 75227500742438.0015.6
2/SPBBP8000 80228000792438.0015.6
3/SPBBP2000 20222000192457.0015.6
3/SPBBP2120 21422120204457.0015.6
3/SPBBP2240 22622240216457.0015.6
3/SPBBP2360 23822360228457.0015.6
3/SPBBP2500 25222500242457.0015.6
3/SPBBP2650 26722650257457.0015.6
3/SPBBP2800 28222800272457.0015.6
3/SPBBP3000 30223000292457.0015.6
3/SPBBP3150 31723150307457.0015.6
3/SPBBP3350 33723350327457.0015.6
3/SPBBP3550 35723550347457.0015.6
3/SPBBP3750 37723750367457.0015.6
3/SPBBP4000 40224000392457.0015.6
3/SPBBP4250 42724250417457.0015.6
3/SPBBP4500 45224500442457.0015.6
3/SPBBP4750 47724750467457.0015.6
3/SPBBP5000 50225000492457.0015.6
3/SPBBP5300 53225300522457.0015.6
3/SPBBP5600 56225600552457.0015.6
3/SPBBP6000 60226000592457.0015.6
3/SPBBP6300 63226300622457.0015.6
3/SPBBP6700 67226700662457.0015.6
3/SPBBP7100 71227100702457.0015.6
3/SPBBP7500 75227500742457.0015.6
3/SPBBP8000 80228000792457.0015.6
4/SPBBP2000 20222000192476.0015.6
4/SPBBP2120 21422120204476.0015.6
4/SPBBP2240 22622240216476.0015.6
4/SPBBP2360 23822360228476.0015.6
4/SPBBP2500 25222500242476.0015.6
4/SPBBP2650 26722650257476.0015.6
4/SPBBP2800 28222800272476.0015.6
4/SPBBP3000 30223000292476.0015.6
4/SPBBP3150 31723150307476.0015.6
4/SPBBP3350 33723350327476.0015.6
4/SPBBP3550 35723550347476.0015.6
4/SPBBP3750 37723750367476.0015.6
4/SPBBP4000 40224000392476.0015.6
4/SPBBP4250 42724250417476.0015.6
4/SPBBP4500 45224500442476.0015.6
4/SPBBP4750 47724750467476.0015.6
4/SPBBP5000 50225000492476.0015.6
4/SPBBP5300 53225300522476.0015.6
4/SPBBP5600 56225600552476.0015.6
4/SPBBP6000 60226000592476.0015.6
4/SPBBP6300 63226300622476.0015.6
4/SPBBP6700 67226700662476.0015.6
4/SPBBP7100 71227100702476.0015.6
4/SPBBP7500 75227500742476.0015.6
4/SPBBP8000 80228000792476.0015.6
5/SPBBP2000 20222000192495.0015.6
5/SPBBP2120 21422120204495.0015.6
5/SPBBP2240 22622240216495.0015.6
5/SPBBP2360 23822360228495.0015.6
5/SPBBP2500 25222500242495.0015.6
5/SPBBP2650 26722650257495.0015.6
5/SPBBP2800 28222800272495.0015.6
5/SPBBP3000 30223000292495.0015.6
5/SPBBP3150 31723150307495.0015.6
5/SPBBP3350 33723350327495.0015.6
5/SPBBP3550 35723550347495.0015.6
5/SPBBP3750 37723750367495.0015.6
5/SPBBP4000 40224000392495.0015.6
5/SPBBP4250 42724250417495.0015.6
5/SPBBP4500 45224500442495.0015.6
5/SPBBP4750 47724750467495.0015.6
5/SPBBP5000 50225000492495.0015.6
5/SPBBP5300 53225300522495.0015.6
5/SPBBP5600 56225600552495.0015.6
5/SPBBP6000 60226000592495.0015.6
5/SPBBP6300 63226300622495.0015.6
5/SPBBP6700 67226700662495.0015.6
5/SPBBP7100 71227100702495.0015.6
5/SPBBP7500 75227500742495.0015.6
5/SPBBP8000 80228000792495.0015.6
Part #Outside Length (mm)Datum Length (mm)Inside Length (mm)Section WidthSection Height
2/SPCBP3000 30223000292438.0015.6
2/SPCBP3150 31723150307438.0015.6
2/SPCBP3350 33723350327438.0015.6
2/SPCBP3550 35723550347438.0015.6
2/SPCBP3750 37723750367438.0015.6
2/SPCBP4000 40224000392438.0015.6
2/SPCBP4250 42724250417438.0015.6
2/SPCBP4500 45244500438251.0022.6
2/SPCBP4750 47744750463251.0022.6
2/SPCBP5000 50245000488251.0022.6
2/SPCBP5300 53245300518251.0022.6
2/SPCBP5600 56245600548251.0022.6
2/SPCBP6000 60246000588251.0022.6
2/SPCBP6300 63246300618251.0022.6
2/SPCBP6700 67246700658251.0022.6
2/SPCBP7100 71247100698251.0022.6
2/SPCBP7500 75247500738251.0022.6
2/SPCBP8000 80248000788251.0022.6
2/SPCBP8500 85248500838251.0022.6
2/SPCBP9000 90249000888251.0022.6
2/SPCBP9500 95249500938251.0022.6
2/SPCBP10000 1002410000988251.0022.6
3/SPCBP3000 30243000288276.5022.6
3/SPCBP3150 31743150303276.5022.6
3/SPCBP3350 33743350323276.5022.6
3/SPCBP3550 35743550343276.5022.6
3/SPCBP3750 37743750363276.5022.6
3/SPCBP4000 40244000388276.5022.6
3/SPCBP4250 42744250413276.5022.6
3/SPCBP4500 45244500438276.5022.6
3/SPCBP4750 47744750463276.5022.6
3/SPCBP5000 50245000488276.5022.6
3/SPCBP5300 53245300518276.5022.6
3/SPCBP5600 56245600548276.5022.6
3/SPCBP6000 60246000588276.5022.6
3/SPCBP6300 63246300618276.5022.6
3/SPCBP6700 67246700658276.5022.6
3/SPCBP7100 71247100698276.5022.6
3/SPCBP7500 75247500738276.5022.6
3/SPCBP8000 80248000788276.5022.6
3/SPCBP8500 85248500838276.5022.6
3/SPCBP9000 90249000888276.5022.6
3/SPCBP9500 95249500938276.5022.6
3/SPCBP10000 1002410000988276.5022.6
4/SPCBP3000 302430002882102.0022.6
4/SPCBP3150 317431503032102.0022.6
4/SPCBP3350 337433503232102.0022.6
4/SPCBP3550 357435503432102.0022.6
4/SPCBP3750 377437503632102.0022.6
4/SPCBP4000 402440003882102.0022.6
4/SPCBP4250 427442504132102.0022.6
4/SPCBP4500 452445004382102.0022.6
4/SPCBP4750 477447504632102.0022.6
4/SPCBP5000 502450004882102.0022.6
4/SPCBP5300 532453005182102.0022.6
4/SPCBP5600 562456005482102.0022.6
4/SPCBP6000 602460005882102.0022.6
4/SPCBP6300 632463006182102.0022.6
4/SPCBP6700 672467006582102.0022.6
4/SPCBP7100 712471006982102.0022.6
4/SPCBP7500 752475007382102.0022.6
4/SPCBP8000 802480007882102.0022.6
4/SPCBP8500 852485008382102.0022.6
4/SPCBP9000 902490008882102.0022.6
4/SPCBP9500 952495009382102.0022.6
4/SPCBP10000 10024100009882102.0022.6
5/SPCBP3000 302430002882127.5022.6
5/SPCBP3150 317431503032127.5022.6
5/SPCBP3350 337433503232127.5022.6
5/SPCBP3550 357435503432127.5022.6
5/SPCBP3750 377437503632127.5022.6
5/SPCBP4000 402440003882127.5022.6
5/SPCBP4250 427442504132127.5022.6
5/SPCBP4500 452445004382127.5022.6
5/SPCBP4750 477447504632127.5022.6
5/SPCBP5000 502450004882127.5022.6
5/SPCBP5300 532453005182127.5022.6
5/SPCBP5600 562456005482127.5022.6
5/SPCBP6000 602460005882127.5022.6
5/SPCBP6300 632463006182127.5022.6
5/SPCBP6700 672467006582127.5022.6
5/SPCBP7100 712471006982127.5022.6
5/SPCBP7500 752475007382127.5022.6
5/SPCBP8000 802480007882127.5022.6
5/SPCBP8500 852485008382127.5022.6
5/SPCBP9000 902490008882127.5022.6
5/SPCBP9500 952495009382127.5022.6
5/SPCBP10000 10024100009882127.5022.6


Product images

Downloads for more information

Productinformation
pdf
491 KB
Heavy Industries V-Belt Brochure
pdf
2 MB
Compact Catalogue - Power Transmission
pdf
17 MB
Technical manual: V-belts
pdf
7 MB
Success Stories
Oil and Gas - Mud Pump
pdf
183 KB
Pulp and Paper - Debarker Mill
pdf
274 KB

Get in contact with us

optibelt NEWSSOURCE

Have the latest information sent to you each month.


Sign up

Illinois (Headquarters)

1580 W. Stearns Rd.
Bartlett, IL 60103

Phone: 630-628-8400
E-mail: info[at]optibelt-usacom
