High Performance Timing Belts

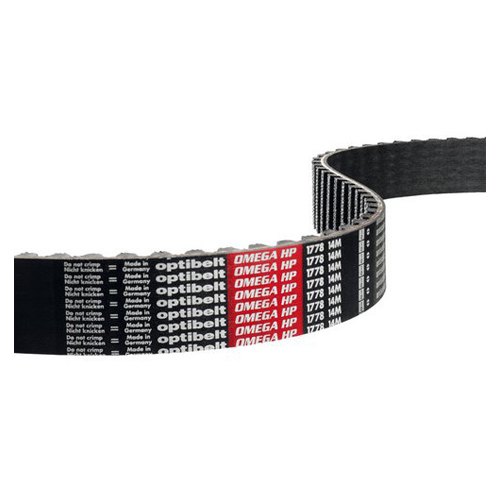

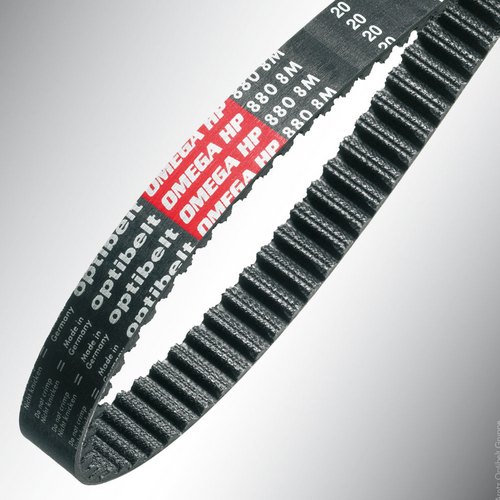

optibelt OMEGA HP



OMEGA HP high performance power transmission timing belts were developed for drive applications that demand the best. With its superior construction OMEGA HP has the durability and performance characteristics far superior than standard timing belts. Fiberglass cords and aramid blended fiber rubber core provide the strength for heavy industrial applications. Fits standard HTD®, RPP®, and MR® pulleys so you get more performance and durability without the need to replace existing pulleys.

Profile sizes and Length range
14M 966 - 4578 mm
3M 111 - 1692 mm
5M 180 - 2525 mm
8M 180 - 2525 mm

Construction details

Construction OMEGA HP


Cord
Glass fiber tension cord. Aramid reinforced polychloroprene core

Rubber
Oil resistant top layer fabric

Cover
Reinforced polyamide tooth cover

Features for improved performance

ULTIMATE PERFORMANCE
Large diameter glass fiber cords and aramid blended core provide superior strength and pulling force.

VERSATILITY
Fits HTD® and RPP® pulleys.


LOW-NOISE
OMEGA tooth design and fabric cover for quieter operation.


TRUE RUNNING
Counter rotated cords ensure the belt does not have a pull bias.

DURABLE
Fabric cover provides for increased wear and chemical resistance.


TEMPERATURE RANGE
Increased operation range -22 to 212°F.

STRENGTH
aramid fibers are blended into the rubber compound for a tooth structure with incredible shear strength.

ANTI-STATIC
8M and 14M profiles meet ISO 9563 anti-static requirements.

Simply add items to your cart, select a distributor, and enter your information. The selected distributor will contact you with pricing, and/or complete your order.

View cart (0)
Part #Pitch Length (mm)Section WidthSection Height
966-14MHP-40 96640.009.5
966-14MHP-55 96666.009.5
966-14MHP-85 96686.009.5
966-14MHP-115 966115.009.5
966-14MHP-170 966170.009.5
1092-14MHP-40 109240.009.5
1092-14MHP-55 109266.009.5
1092-14MHP-85 109286.009.5
1092-14MHP-115 1092115.009.5
1092-14MHP-170 1092170.009.5
1190-14MHP-40 119040.009.5
1190-14MHP-55 119066.009.5
1190-14MHP-85 119086.009.5
1190-14MHP-115 1190115.009.5
1190-14MHP-170 1190170.009.5
1344-14MHP-40 134440.009.5
1344-14MHP-55 134466.009.5
1344-14MHP-85 134486.009.5
1344-14MHP-115 1344115.009.5
1344-14MHP-170 1344170.009.5
1400-14MHP-40 140040.009.5
1400-14MHP-55 140066.009.5
1400-14MHP-85 140086.009.5
1400-14MHP-115 1400115.009.5
1400-14MHP-170 1400170.009.5
1456-14MHP-40 145640.009.5
1456-14MHP-55 145666.009.5
1456-14MHP-85 145686.009.5
1456-14MHP-115 1456115.009.5
1456-14MHP-170 1456170.009.5
1512-14MHP-40 151240.009.5
1512-14MHP-55 151266.009.5
1512-14MHP-85 151286.009.5
1512-14MHP-115 1512115.009.5
1512-14MHP-170 1512170.009.5
1610-14MHP-40 161040.009.5
1610-14MHP-55 161066.009.5
1610-14MHP-85 161086.009.5
1610-14MHP-115 1610115.009.5
1610-14MHP-170 1610170.009.5
1680-14MHP-40 168040.009.5
1680-14MHP-55 168066.009.5
1680-14MHP-85 168086.009.5
1680-14MHP-115 1680115.009.5
1680-14MHP-170 1680170.009.5
1778-14MHP-40 177840.009.5
1778-14MHP-55 177866.009.5
1778-14MHP-85 177886.009.5
1778-14MHP-115 1778115.009.5
1778-14MHP-170 1778170.009.5
1890-14MHP-40 189040.009.5
1890-14MHP-55 189066.009.5
1890-14MHP-85 189086.009.5
1890-14MHP-115 1890115.009.5
1890-14MHP-170 1890170.009.5
2100-14MHP-40 210040.009.5
2100-14MHP-55 210066.009.5
2100-14MHP-85 210086.009.5
2100-14MHP-115 2100115.009.5
2100-14MHP-170 2100170.009.5
2310-14MHP-40 231040.009.5
2310-14MHP-55 231066.009.5
2310-14MHP-85 231086.009.5
2310-14MHP-115 2310115.009.5
2310-14MHP-170 2310170.009.5
2450-14MHP-40 245040.009.5
2450-14MHP-55 245066.009.5
2450-14MHP-85 245086.009.5
2450-14MHP-115 2450115.009.5
2450-14MHP-170 2450170.009.5
2590-14MHP-40 259040.009.5
2590-14MHP-55 259066.009.5
2590-14MHP-85 259086.009.5
2590-14MHP-115 2590115.009.5
2590-14MHP-170 2590170.009.5
2800-14MHP-40 280040.009.5
2800-14MHP-55 280066.009.5
2800-14MHP-85 280086.009.5
2800-14MHP-115 2800115.009.5
2800-14MHP-170 2800170.009.5
3150-14MHP-40 315040.009.5
3150-14MHP-55 315066.009.5
3150-14MHP-85 315086.009.5
3150-14MHP-115 3150115.009.5
3150-14MHP-170 3150170.009.5
3360-14MHP-40 336040.009.5
3360-14MHP-55 336066.009.5
3360-14MHP-85 336086.009.5
3360-14MHP-115 3360115.009.5
3360-14MHP-170 3360170.009.5
3500-14MHP-40 350040.009.5
3500-14MHP-55 350066.009.5
3500-14MHP-85 350086.009.5
3500-14MHP-115 3500115.009.5
3500-14MHP-170 3500170.009.5
3850-14MHP-40 385040.009.5
3850-14MHP-55 385066.009.5
3850-14MHP-85 385086.009.5
3850-14MHP-115 3850115.009.5
3850-14MHP-170 3850170.009.5
4326-14MHP-40 432640.009.5
4326-14MHP-55 432666.009.5
4326-14MHP-85 432686.009.5
4326-14MHP-115 4326115.009.5
4326-14MHP-170 4326170.009.5
4578-14MHP-40 457840.009.5
4578-14MHP-55 457866.009.5
4578-14MHP-85 457886.009.5
4578-14MHP-115 4578115.009.5
4578-14MHP-170 4578170.009.5
Part #Pitch Length (mm)Section WidthSection Height
111-3MHP-6 1116.002.3
111-3MHP-9 1119.002.3
111-3MHP-15 11115.002.3
129-3MHP-6 1296.002.3
129-3MHP-9 1299.002.3
129-3MHP-15 12915.002.3
141-3MHP-6 1416.002.3
141-3MHP-9 1419.002.3
141-3MHP-15 14115.002.3
144-3MHP-6 1446.002.3
144-3MHP-9 1449.002.3
144-3MHP-15 14415.002.3
150-3MHP-6 1506.002.3
150-3MHP-9 1509.002.3
150-3MHP-15 15015.002.3
159-3MHP-6 1596.002.3
159-3MHP-9 1599.002.3
159-3MHP-15 15915.002.3
165-3MHP-6 1656.002.3
165-3MHP-9 1659.002.3
165-3MHP-15 16515.002.3
168-3MHP-6 1686.002.3
168-3MHP-9 1689.002.3
168-3MHP-15 16815.002.3
171-3MHP-6 1716.002.3
171-3MHP-9 1719.002.3
171-3MHP-15 17115.002.3
174-3MHP-6 1746.002.3
174-3MHP-9 1749.002.3
174-3MHP-15 17415.002.3
177-3MHP-6 1776.002.3
177-3MHP-9 1779.002.3
177-3MHP-15 17715.002.3
180-3MHP-6 1806.002.3
180-3MHP-9 1809.002.3
180-3MHP-15 18015.002.3
183-3MHP-6 1836.002.3
183-3MHP-9 1839.002.3
183-3MHP-15 18315.002.3
186-3MHP-6 1866.002.3
186-3MHP-9 1869.002.3
186-3MHP-15 18615.002.3
192-3MHP-6 1926.002.3
192-3MHP-9 1929.002.3
192-3MHP-15 19215.002.3
195-3MHP-6 1956.002.3
195-3MHP-9 1959.002.3
195-3MHP-15 19515.002.3
201-3MHP-6 2016.002.3
201-3MHP-9 2019.002.3
201-3MHP-15 20115.002.3
204-3MHP-6 2046.002.3
204-3MHP-9 2049.002.3
204-3MHP-15 20415.002.3
207-3MHP-6 2076.002.3
207-3MHP-9 2079.002.3
207-3MHP-15 20715.002.3
210-3MHP-6 2106.002.3
210-3MHP-9 2109.002.3
210-3MHP-15 21015.002.3
213-3MHP-6 2136.002.3
213-3MHP-9 2139.002.3
213-3MHP-15 21315.002.3
225-3MHP-6 2256.002.3
225-3MHP-9 2259.002.3
225-3MHP-15 22515.002.3
240-3MHP-6 2406.002.3
240-3MHP-9 2409.002.3
240-3MHP-15 24015.002.3
246-3MHP-6 2466.002.3
246-3MHP-9 2469.002.3
246-3MHP-15 24615.002.3
249-3MHP-6 2496.002.3
249-3MHP-9 2499.002.3
249-3MHP-15 24915.002.3
252-3MHP-6 2526.002.3
252-3MHP-9 2529.002.3
252-3MHP-15 25215.002.3
255-3MHP-6 2556.002.3
255-3MHP-9 2559.002.3
255-3MHP-15 25515.002.3
267-3MHP-6 2676.002.3
267-3MHP-9 2679.002.3
267-3MHP-15 26715.002.3
276-3MHP-6 2766.002.3
276-3MHP-9 2769.002.3
276-3MHP-15 27615.002.3
282-3MHP-6 2826.002.3
282-3MHP-9 2829.002.3
282-3MHP-15 28215.002.3
285-3MHP-6 2856.002.3
285-3MHP-9 2859.002.3
285-3MHP-15 28515.002.3
288-3MHP-6 2886.002.3
288-3MHP-9 2889.002.3
288-3MHP-15 28815.002.3
291-3MHP-6 2916.002.3
291-3MHP-9 2919.002.3
291-3MHP-15 29115.002.3
294-3MHP-6 2946.002.3
294-3MHP-9 2949.002.3
294-3MHP-15 29415.002.3
300-3MHP-6 3006.002.3
300-3MHP-9 3009.002.3
300-3MHP-15 30015.002.3
312-3MHP-6 3126.002.3
312-3MHP-9 3129.002.3
312-3MHP-15 31215.002.3
315-3MHP-6 3156.002.3
315-3MHP-9 3159.002.3
315-3MHP-15 31515.002.3
318-3MHP-6 3186.002.3
318-3MHP-9 3189.002.3
318-3MHP-15 31815.002.3
330-3MHP-6 3306.002.3
330-3MHP-9 3309.002.3
330-3MHP-15 33015.002.3
333-3MHP-6 3336.002.3
333-3MHP-9 3339.002.3
333-3MHP-15 33315.002.3
339-3MHP-6 3396.002.3
339-3MHP-9 3399.002.3
339-3MHP-15 33915.002.3
345-3MHP-6 3456.002.3
345-3MHP-9 3459.002.3
345-3MHP-15 34515.002.3
357-3MHP-6 3576.002.3
357-3MHP-9 3579.002.3
357-3MHP-15 35715.002.3
363-3MHP-6 3636.002.3
363-3MHP-9 3639.002.3
363-3MHP-15 36315.002.3
366-3MHP-6 3666.002.3
366-3MHP-9 3669.002.3
366-3MHP-15 36615.002.3
384-3MHP-6 3846.002.3
384-3MHP-9 3849.002.3
384-3MHP-15 38415.002.3
390-3MHP-6 3906.002.3
390-3MHP-9 3909.002.3
390-3MHP-15 39015.002.3
420-3MHP-6 4206.002.3
420-3MHP-9 4209.002.3
420-3MHP-15 42015.002.3
426-3MHP-6 4266.002.3
426-3MHP-9 4269.002.3
426-3MHP-15 42615.002.3
435-3MHP-6 4356.002.3
435-3MHP-9 4359.002.3
435-3MHP-15 43515.002.3
447-3MHP-6 4476.002.3
447-3MHP-9 4479.002.3
447-3MHP-15 44715.002.3
462-3MHP-6 4626.002.3
462-3MHP-9 4629.002.3
462-3MHP-15 46215.002.3
474-3MHP-6 4746.002.3
474-3MHP-9 4749.002.3
474-3MHP-15 47415.002.3
480-3MHP-6 4806.002.3
480-3MHP-9 4809.002.3
480-3MHP-15 48015.002.3
486-3MHP-6 4866.002.3
486-3MHP-9 4869.002.3
486-3MHP-15 48615.002.3
495-3MHP-6 4956.002.3
495-3MHP-9 4959.002.3
495-3MHP-15 49515.002.3
501-3MHP-6 5016.002.3
501-3MHP-9 5019.002.3
501-3MHP-15 50115.002.3
513-3MHP-6 5136.002.3
513-3MHP-9 5139.002.3
513-3MHP-15 51315.002.3
519-3MHP-6 5196.002.3
519-3MHP-9 5199.002.3
519-3MHP-15 51915.002.3
522-3MHP-6 5226.002.3
522-3MHP-9 5229.002.3
522-3MHP-15 52215.002.3
525-3MHP-6 5256.002.3
525-3MHP-9 5259.002.3
525-3MHP-15 52515.002.3
531-3MHP-6 5316.002.3
531-3MHP-9 5139.002.3
531-3MHP-15 53115.002.3
537-3MHP-6 5376.002.3
537-3MHP-9 5379.002.3
537-3MHP-15 53715.002.3
558-3MHP-6 5586.002.3
558-3MHP-9 5589.002.3
558-3MHP-15 55815.002.3
564-3MHP-6 5646.002.3
564-3MHP-9 5649.002.3
564-3MHP-15 56415.002.3
570-3MHP-6 5706.002.3
570-3MHP-9 5709.002.3
570-3MHP-15 57015.002.3
582-3MHP-6 5826.002.3
582-3MHP-9 5829.002.3
582-3MHP-15 58215.002.3
597-3MHP-6 5976.002.3
597-3MHP-9 5979.002.3
597-3MHP-15 59715.002.3
600-3MHP-6 6006.002.3
600-3MHP-9 6009.002.3
600-3MHP-15 60015.002.3
606-3MHP-6 6066.002.3
606-3MHP-9 6069.002.3
606-3MHP-15 60615.002.3
615-3MHP-6 6156.002.3
615-3MHP-9 6159.002.3
615-3MHP-15 61515.002.3
633-3MHP-6 6336.002.3
633-3MHP-9 6339.002.3
633-3MHP-15 63315.002.3
669-3MHP-6 6696.002.3
669-3MHP-9 6699.002.3
669-3MHP-15 66915.002.3
675-3MHP-6 6756.002.3
675-3MHP-9 6759.002.3
675-3MHP-15 67515.002.3
711-3MHP-6 7116.002.3
711-3MHP-9 7119.002.3
711-3MHP-15 71115.002.3
738-3MHP-6 7386.002.3
738-3MHP-9 7389.002.3
738-3MHP-15 73815.002.3
804-3MHP-6 8046.002.3
804-3MHP-9 8049.002.3
804-3MHP-15 80415.002.3
816-3MHP-6 8166.002.3
816-3MHP-9 8169.002.3
816-3MHP-15 81615.002.3
843-3MHP-6 8436.002.3
843-3MHP-9 8439.002.3
843-3MHP-15 84315.002.3
882-3MHP-6 8826.002.3
882-3MHP-9 8829.002.3
882-3MHP-15 88215.002.3
888-3MHP-6 8886.002.3
888-3MHP-9 8889.002.3
888-3MHP-15 88815.002.3
1062-3MHP-6 10626.002.3
1062-3MHP-9 10629.002.3
1062-3MHP-15 106215.002.3
1569-3MHP-6 15696.002.3
1569-3MHP-9 15699.002.3
1569-3MHP-15 156915.002.3
1692-3MHP-6 16926.002.3
1692-3MHP-9 16929.002.3
1692-3MHP-15 169215.002.3
Part #Pitch Length (mm)Section WidthSection Height
180-5MHP-9 1809.003.4
180-5MHP-15 18015.003.4
180-5MHP-25 18025.003.4
225-5MHP-9 2259.003.4
225-5MHP-15 22515.003.4
225-5MHP-25 22525.003.4
255-5MHP-9 2559.003.4
255-5MHP-15 25515.003.4
255-5MHP-25 25525.003.4
265-5MHP-9 2659.003.4
265-5MHP-15 26515.003.4
265-5MHP-25 26525.003.4
270-5MHP-9 2709.003.4
270-5MHP-15 27015.003.4
270-5MHP-25 27025.003.4
280-5MHP-9 2809.003.4
280-5MHP-15 28015.003.4
280-5MHP-25 28025.003.4
295-5MHP-9 2959.003.4
295-5MHP-15 29515.003.4
295-5MHP-25 29525.003.4
300-5MHP-9 3009.003.4
300-5MHP-15 30015.003.4
300-5MHP-25 30025.003.4
305-5MHP-9 3059.003.4
305-5MHP-15 30515.003.4
305-5MHP-25 30525.003.4
325-5MHP-9 3259.003.4
325-5MHP-15 32515.003.4
325-5MHP-25 32525.003.4
330-5MHP-9 3309.003.4
330-5MHP-15 33015.003.4
330-5MHP-25 33025.003.4
340-5MHP-9 3409.003.4
340-5MHP-15 34015.003.4
340-5MHP-25 34025.003.4
350-5MHP-9 3509.003.4
350-5MHP-15 35015.003.4
350-5MHP-25 35025.003.4
360-5MHP-9 3609.003.4
360-5MHP-15 36015.003.4
360-5MHP-25 36025.003.4
365-5MHP-9 3659.003.4
365-5MHP-15 36515.003.4
365-5MHP-25 36525.003.4
370-5MHP-9 3709.003.4
370-5MHP-15 37015.003.4
370-5MHP-25 37025.003.4
375-5MHP-9 3759.003.4
375-5MHP-15 37515.003.4
375-5MHP-25 37525.003.4
385-5MHP-9 3859.003.4
385-5MHP-15 38515.003.4
385-5MHP-25 38525.003.4
400-5MHP-9 4009.003.4
400-5MHP-15 40015.003.4
400-5MHP-25 40025.003.4
415-5MHP-9 4159.003.4
415-5MHP-15 41515.003.4
415-5MHP-25 41525.003.4
420-5MHP-9 4209.003.4
420-5MHP-15 42015.003.4
420-5MHP-25 42025.003.4
425-5MHP-9 4259.003.4
425-5MHP-15 42515.003.4
425-5MHP-25 42525.003.4
450-5MHP-9 4509.003.4
450-5MHP-15 45015.003.4
450-5MHP-25 45025.003.4
460-5MHP-9 4609.003.4
460-5MHP-15 46015.003.4
460-5MHP-25 46025.003.4
475-5MHP-9 4759.003.4
475-5MHP-15 47515.003.4
475-5MHP-25 47525.003.4
490-5MHP-9 4909.003.4
490-5MHP-15 49015.003.4
490-5MHP-25 49025.003.4
500-5MHP-9 5009.003.4
500-5MHP-15 50015.003.4
500-5MHP-25 50025.003.4
520-5MHP-9 5209.003.4
520-5MHP-15 52015.003.4
520-5MHP-25 52025.003.4
525-5MHP-9 5259.003.4
525-5MHP-15 52515.003.4
525-5MHP-25 52525.003.4
535-5MHP-9 5359.003.4
535-5MHP-15 53515.003.4
535-5MHP-25 53525.003.4
540-5MHP-9 5409.003.4
540-5MHP-15 54015.003.4
540-5MHP-25 54025.003.4
550-5MHP-9 5509.003.4
550-5MHP-15 55015.003.4
550-5MHP-25 55025.003.4
560-5MHP-9 5609.003.4
560-5MHP-15 56015.003.4
560-5MHP-25 56025.003.4
565-5MHP-9 5659.003.4
565-5MHP-15 56515.003.4
565-5MHP-25 56525.003.4
575-5MHP-9 5759.003.4
575-5MHP-15 57515.003.4
575-5MHP-25 57525.003.4
580-5MHP-9 5809.003.4
580-5MHP-15 58015.003.4
580-5MHP-25 58025.003.4
600-5MHP-9 6009.003.4
600-5MHP-15 60015.003.4
600-5MHP-25 60025.003.4
610-5MHP-9 6109.003.4
610-5MHP-15 61015.003.4
610-5MHP-25 61025.003.4
615-5MHP-9 6159.003.4
615-5MHP-15 61515.003.4
615-5MHP-25 61525.003.4
630-5MHP-9 6309.003.4
630-5MHP-15 63015.003.4
630-5MHP-25 63025.003.4
635-5MHP-9 6359.003.4
635-5MHP-15 63515.003.4
635-5MHP-25 63525.003.4
640-5MHP-9 6409.003.4
640-5MHP-15 64015.003.4
640-5MHP-25 64025.003.4
645-5MHP-9 6459.003.4
645-5MHP-15 64515.003.4
645-5MHP-25 64525.003.4
650-5MHP-9 6509.003.4
650-5MHP-15 65015.003.4
650-5MHP-25 65025.003.4
665-5MHP-9 6659.003.4
665-5MHP-15 66515.003.4
665-5MHP-25 66525.003.4
670-5MHP-9 6709.003.4
670-5MHP-15 67015.003.4
670-5MHP-25 67025.003.4
700-5MHP-9 7009.003.4
700-5MHP-15 70015.003.4
700-5MHP-25 70025.003.4
710-5MHP-9 7109.003.4
710-5MHP-15 71015.003.4
710-5MHP-25 71025.003.4
720-5MHP-9 7209.003.4
720-5MHP-15 72015.003.4
720-5MHP-25 72025.003.4
740-5MHP-9 7409.003.4
740-5MHP-15 74015.003.4
740-5MHP-25 74025.003.4
750-5MHP-9 7509.003.4
750-5MHP-15 75015.003.4
750-5MHP-25 75025.003.4
755-5MHP-9 7559.003.4
755-5MHP-15 75515.003.4
755-5MHP-25 75525.003.4
775-5MHP-9 7759.003.4
775-5MHP-15 77515.003.4
775-5MHP-25 77525.003.4
790-5MHP-9 7909.003.4
790-5MHP-15 79015.003.4
790-5MHP-25 79025.003.4
800-5MHP-9 8009.003.4
800-5MHP-15 80015.003.4
800-5MHP-25 80025.003.4
825-5MHP-9 8259.003.4
825-5MHP-15 82515.003.4
825-5MHP-25 82525.003.4
830-5MHP-9 8309.003.4
830-5MHP-15 83015.003.4
830-5MHP-25 83025.003.4
835-5MHP-9 8359.003.4
835-5MHP-15 83515.003.4
835-5MHP-25 83525.003.4
850-5MHP-9 8509.003.4
850-5MHP-15 85015.003.4
850-5MHP-25 85025.003.4
860-5MHP-9 8609.003.4
860-5MHP-15 86015.003.4
860-5MHP-25 86025.003.4
890-5MHP-9 8909.003.4
890-5MHP-15 89015.003.4
890-5MHP-25 89025.003.4
900-5MHP-9 9009.003.4
900-5MHP-15 90015.003.4
900-5MHP-25 90025.003.4
925-5MHP-9 9259.003.4
925-5MHP-15 92515.003.4
925-5MHP-25 92525.003.4
935-5MHP-9 9359.003.4
935-5MHP-15 93515.003.4
935-5MHP-25 93525.003.4
940-5MHP-9 9409.003.4
940-5MHP-15 94015.003.4
940-5MHP-25 94025.003.4
950-5MHP-9 9509.003.4
950-5MHP-15 95015.003.4
950-5MHP-25 95025.003.4
965-5MHP-9 9659.003.4
965-5MHP-15 96515.003.4
965-5MHP-25 96525.003.4
975-5MHP-9 9759.003.4
975-5MHP-15 97515.003.4
975-5MHP-25 97525.003.4
980-5MHP-9 9809.003.4
980-5MHP-15 98015.003.4
980-5MHP-25 98025.003.4
1000-5MHP-9 10009.003.4
1000-5MHP-15 100015.003.4
1000-5MHP-25 100025.003.4
1025-5MHP-9 10259.003.4
1025-5MHP-15 102515.003.4
1025-5MHP-25 102525.003.4
1035-5MHP-9 10359.003.4
1035-5MHP-15 103515.003.4
1035-5MHP-25 103525.003.4
1050-5MHP-9 10509.003.4
1050-5MHP-15 105015.003.4
1050-5MHP-25 105025.003.4
1100-5MHP-9 11009.003.4
1100-5MHP-15 110015.003.4
1100-5MHP-25 110025.003.4
1125-5MHP-9 11259.003.4
1125-5MHP-15 112515.003.4
1125-5MHP-25 112525.003.4
1135-5MHP-9 11359.003.4
1135-5MHP-15 113515.003.4
1135-5MHP-25 113525.003.4
1200-5MHP-9 12009.003.4
1200-5MHP-15 120015.003.4
1200-5MHP-25 120025.003.4
1270-5MHP-9 12709.003.4
1270-5MHP-15 127015.003.4
1270-5MHP-25 127025.003.4
1380-5MHP-9 13809.003.4
1380-5MHP-15 138015.003.4
1380-5MHP-25 138025.003.4
1400-5MHP-9 14009.003.4
1400-5MHP-15 140015.003.4
1400-5MHP-25 140025.003.4
1420-5MHP-9 14209.003.4
1420-5MHP-15 142015.003.4
1420-5MHP-25 142025.003.4
1425-5MHP-9 14259.003.4
1425-5MHP-15 142515.003.4
1425-5MHP-25 142525.003.4
1500-5MHP-9 15009.003.4
1500-5MHP-15 150015.003.4
1500-5MHP-25 150025.003.4
1595-5MHP-9 15959.003.4
1595-5MHP-15 159515.003.4
1595-5MHP-25 159525.003.4
1690-5MHP-9 16909.003.4
1690-5MHP-15 169015.003.4
1690-5MHP-25 169025.003.4
1790-5MHP-9 17909.003.4
1790-5MHP-15 179015.003.4
1790-5MHP-25 179025.003.4
1870-5MHP-9 18709.003.4
1870-5MHP-15 187015.003.4
1870-5MHP-25 187025.003.4
1895-5MHP-9 18959.003.4
1895-5MHP-15 189515.003.4
1895-5MHP-25 189525.003.4
2000-5MHP-9 20009.003.4
2000-5MHP-15 200015.003.4
2000-5MHP-25 200025.003.4
2110-5MHP-9 21109.003.4
2110-5MHP-15 211015.003.4
2110-5MHP-25 211025.003.4
2350-5MHP-9 23509.003.4
2350-5MHP-15 235015.003.4
2350-5MHP-25 235025.003.4
2525-5MHP-9 25259.003.4
2525-5MHP-15 252515.003.4
2525-5MHP-25 252525.003.4
Part #Pitch Length (mm)Section WidthSection Height
288-8MHP-20 28820.005.4
288-8MHP-30 28830.005.4
288-8MHP-50 28850.005.4
288-8MHP-85 28885.005.4
352-8MHP-20 35220.005.4
352-8MHP-30 35230.005.4
352-8MHP-50 35250.005.4
352-8MHP-85 35285.005.4
376-8MHP-20 37620.005.4
376-8MHP-30 37630.005.4
376-8MHP-50 37650.005.4
376-8MHP-85 37685.005.4
416-8MHP-20 41620.005.4
416-8MHP-30 41630.005.4
416-8MHP-50 41650.005.4
416-8MHP-85 41685.005.4
424-8MHP-20 42420.005.4
424-8MHP-30 42430.005.4
424-8MHP-50 42450.005.4
424-8MHP-85 42485.005.4
480-8MHP-20 48020.005.4
480-8MHP-30 48030.005.4
480-8MHP-50 48050.005.4
480-8MHP-85 48085.005.4
512-8MHP-20 51220.005.4
512-8MHP-30 51230.005.4
512-8MHP-50 51250.005.4
512-8MHP-85 51285.005.4
520-8MHP-20 52020.005.4
520-8MHP-30 52030.005.4
520-8MHP-50 52050.005.4
520-8MHP-85 52085.005.4
560-8MHP-20 56020.005.4
560-8MHP-30 56030.005.4
560-8MHP-50 56050.005.4
560-8MHP-85 56085.005.4
576-8MHP-20 57620.005.4
576-8MHP-30 57630.005.4
576-8MHP-50 57650.005.4
576-8MHP-85 57685.005.4
600-8MHP-20 60020.005.4
600-8MHP-30 60030.005.4
600-8MHP-50 60050.005.4
600-8MHP-85 60085.005.4
608-8MHP-20 60820.005.4
608-8MHP-30 60830.005.4
608-8MHP-50 60850.005.4
608-8MHP-85 60885.005.4
624-8MHP-20 62420.005.4
624-8MHP-30 62430.005.4
624-8MHP-50 62450.005.4
624-8MHP-85 62485.005.4
632-8MHP-20 63220.005.4
632-8MHP-30 63230.005.4
632-8MHP-50 63250.005.4
632-8MHP-85 63285.005.4
640-8MHP-20 64020.005.4
640-8MHP-30 64030.005.4
640-8MHP-50 64050.005.4
640-8MHP-85 64085.005.4
656-8MHP-20 65620.005.4
656-8MHP-30 65630.005.4
656-8MHP-50 65650.005.4
656-8MHP-85 65685.005.4
680-8MHP-20 68020.005.4
680-8MHP-30 68030.005.4
680-8MHP-50 68050.005.4
680-8MHP-85 68085.005.4
712-8MHP-20 71220.005.4
712-8MHP-30 71230.005.4
712-8MHP-50 71250.005.4
712-8MHP-85 71285.005.4
720-8MHP-20 72020.005.4
720-8MHP-30 72030.005.4
720-8MHP-50 72050.005.4
720-8MHP-85 72085.005.4
760-8MHP-20 76020.005.4
760-8MHP-30 76030.005.4
760-8MHP-50 76050.005.4
760-8MHP-85 76085.005.4
776-8MHP-20 77620.005.4
776-8MHP-30 77630.005.4
776-8MHP-50 77650.005.4
776-8MHP-85 77685.005.4
784-8MHP-20 78420.005.4
784-8MHP-30 78430.005.4
784-8MHP-50 78450.005.4
784-8MHP-85 78485.005.4
800-8MHP-20 80020.005.4
800-8MHP-30 80030.005.4
800-8MHP-50 80050.005.4
800-8MHP-85 80085.005.4
824-8MHP-20 82420.005.4
824-8MHP-30 82430.005.4
824-8MHP-50 82450.005.4
824-8MHP-85 82485.005.4
840-8MHP-20 84020.005.4
840-8MHP-30 84030.005.4
840-8MHP-50 84050.005.4
840-8MHP-85 84085.005.4
848-8MHP-20 84820.005.4
848-8MHP-30 84830.005.4
848-8MHP-50 84850.005.4
848-8MHP-85 84885.005.4
856-8MHP-20 85620.005.4
856-8MHP-30 85630.005.4
856-8MHP-50 85650.005.4
856-8MHP-85 85685.005.4
880-8MHP-20 88020.005.4
880-8MHP-30 88030.005.4
880-8MHP-50 88050.005.4
880-8MHP-85 88085.005.4
896-8MHP-20 89620.005.4
896-8MHP-30 89630.005.4
896-8MHP-50 89650.005.4
896-8MHP-85 89685.005.4
912-8MHP-20 91220.005.4
912-8MHP-30 91230.005.4
912-8MHP-50 91250.005.4
912-8MHP-85 92185.005.4
920-8MHP-20 92020.005.4
920-8MHP-30 92030.005.4
920-8MHP-50 92050.005.4
920-8MHP-85 92085.005.4
960-8MHP-20 96020.005.4
960-8MHP-30 96030.005.4
960-8MHP-50 96050.005.4
960-8MHP-85 96085.005.4
976-8MHP-20 97620.005.4
976-8MHP-30 97630.005.4
976-8MHP-50 97650.005.4
976-8MHP-85 97685.005.4
1000-8MHP-20 100020.005.4
1000-8MHP-30 100030.005.4
1000-8MHP-50 100050.005.4
1000-8MHP-85 100085.005.4
1040-8MHP-20 104020.005.4
1040-8MHP-30 104030.005.4
1040-8MHP-50 104050.005.4
1040-8MHP-85 104085.005.4
1056-8MHP-20 105620.005.4
1056-8MHP-30 105630.005.4
1056-8MHP-50 105650.005.4
1056-8MHP-85 105685.005.4
1064-8MHP-20 106420.005.4
1064-8MHP-30 106430.005.4
1064-8MHP-50 106450.005.4
1064-8MHP-85 106485.005.4
1080-8MHP-20 108020.005.4
1080-8MHP-30 108030.005.4
1080-8MHP-50 108050.005.4
1080-8MHP-85 108085.005.4
1096-8MHP-20 109620.005.4
1096-8MHP-30 109630.005.4
1096-8MHP-50 109650.005.4
1096-8MHP-85 109685.005.4
1120-8MHP-20 112020.005.4
1120-8MHP-30 112030.005.4
1120-8MHP-50 112050.005.4
1120-8MHP-85 112085.005.4
1128-8MHP-20 112820.005.4
1128-8MHP-30 112830.005.4
1128-8MHP-50 112850.005.4
1128-8MHP-85 112885.005.4
1160-8MHP-20 116020.005.4
1160-8MHP-30 116030.005.4
1160-8MHP-50 116050.005.4
1160-8MHP-85 116085.005.4
1184-8MHP-20 118420.005.4
1184-8MHP-30 118430.005.4
1184-8MHP-50 118450.005.4
1184-8MHP-85 118485.005.4
1200-8MHP-20 120020.005.4
1200-8MHP-30 120030.005.4
1200-8MHP-50 120050.005.4
1200-8MHP-85 120085.005.4
1216-8MHP-20 121620.005.4
1216-8MHP-30 121630.005.4
1216-8MHP-50 121650.005.4
1216-8MHP-85 121685.005.4
1224-8MHP-20 122420.005.4
1224-8MHP-30 122430.005.4
1224-8MHP-50 122450.005.4
1224-8MHP-85 122485.005.4
1248-8MHP-20 124820.005.4
1248-8MHP-30 124830.005.4
1248-8MHP-50 124850.005.4
1248-8MHP-85 124885.005.4
1256-8MHP-20 125620.005.4
1256-8MHP-30 125630.005.4
1256-8MHP-50 125650.005.4
1256-8MHP-85 125685.005.4
1264-8MHP-20 126420.005.4
1264-8MHP-30 126430.005.4
1264-8MHP-50 126450.005.4
1264-8MHP-85 126485.005.4
1280-8MHP-20 128020.005.4
1280-8MHP-30 128030.005.4
1280-8MHP-50 128050.005.4
1280-8MHP-85 128085.005.4
1304-8MHP-20 130420.005.4
1304-8MHP-30 130430.005.4
1304-8MHP-50 130450.005.4
1304-8MHP-85 130485.005.4
1328-8MHP-20 132820.005.4
1328-8MHP-30 132830.005.4
1328-8MHP-50 132850.005.4
1328-8MHP-85 132885.005.4
1344-8MHP-20 134420.005.4
1344-8MHP-30 134430.005.4
1344-8MHP-50 134450.005.4
1344-8MHP-85 134485.005.4
1360-8MHP-20 136020.005.4
1360-8MHP-30 136030.005.4
1360-8MHP-50 136050.005.4
1360-8MHP-85 136085.005.4
1400-8MHP-20 140020.005.4
1400-8MHP-30 140030.005.4
1400-8MHP-50 140050.005.4
1400-8MHP-85 140085.005.4
1424-8MHP-20 142420.005.4
1424-8MHP-30 142430.005.4
1424-8MHP-50 142450.005.4
1424-8MHP-85 142485.005.4
1440-8MHP-20 140020.005.4
1440-8MHP-30 144030.005.4
1440-8MHP-50 144050.005.4
1440-8MHP-85 144085.005.4
1520-8MHP-20 152020.005.4
1520-8MHP-30 152030.005.4
1520-8MHP-50 152050.005.4
1520-8MHP-85 152085.005.4
1552-8MHP-20 155220.005.4
1552-8MHP-30 155230.005.4
1552-8MHP-50 155250.005.4
1552-8MHP-85 155285.005.4
1584-8MHP-20 158420.005.4
1584-8MHP-30 158430.005.4
1584-8MHP-50 158450.005.4
1584-8MHP-85 158485.005.4
1600-8MHP-20 160020.005.4
1600-8MHP-30 160030.005.4
1600-8MHP-50 160050.005.4
1600-8MHP-85 160085.005.4
1680-8MHP-20 168020.005.4
1680-8MHP-30 168030.005.4
1680-8MHP-50 168050.005.4
1680-8MHP-85 168085.005.4
1696-8MHP-20 169620.005.4
1696-8MHP-30 169630.005.4
1696-8MHP-50 169650.005.4
1696-8MHP-85 169685.005.4
1728-8MHP-20 172820.005.4
1728-8MHP-30 172830.005.4
1728-8MHP-50 172850.005.4
1728-8MHP-85 172885.005.4
1760-8MHP-20 176020.005.4
1760-8MHP-30 176030.005.4
1760-8MHP-50 176050.005.4
1760-8MHP-85 176085.005.4
1800-8MHP-20 180020.005.4
1800-8MHP-30 180030.005.4
1800-8MHP-50 180050.005.4
1800-8MHP-85 180085.005.4
1904-8MHP-20 190420.005.4
1904-8MHP-30 190430.005.4
1904-8MHP-50 190450.005.4
1904-8MHP-85 190485.005.4
1936-8MHP-20 193620.005.4
1936-8MHP-30 193630.005.4
1936-8MHP-50 193650.005.4
1936-8MHP-85 193685.005.4
2000-8MHP-20 200020.005.4
2000-8MHP-30 200030.005.4
2000-8MHP-50 200050.005.4
2000-8MHP-85 200085.005.4
2080-8MHP-20 208020.005.4
2080-8MHP-30 208030.005.4
2080-8MHP-50 208050.005.4
2080-8MHP-85 208085.005.4
2104-8MHP-20 210420.005.4
2104-8MHP-30 210430.005.4
2104-8MHP-50 210450.005.4
2104-8MHP-85 210485.005.4
2240-8MHP-20 224020.005.4
2240-8MHP-30 224030.005.4
2240-8MHP-50 224050.005.4
2240-8MHP-85 224085.005.4
2248-8MHP-20 224820.005.4
2248-8MHP-30 224830.005.4
2248-8MHP-50 224850.005.4
2248-8MHP-85 224885.005.4
2272-8MHP-20 227220.005.4
2272-8MHP-30 227230.005.4
2272-8MHP-50 227250.005.4
2272-8MHP-85 227285.005.4
2400-8MHP-20 240020.005.4
2400-8MHP-30 240030.005.4
2400-8MHP-50 240050.005.4
2400-8MHP-85 240085.005.4
2504-8MHP-20 250420.005.4
2504-8MHP-30 250430.005.4
2504-8MHP-50 250450.005.4
2504-8MHP-85 250485.005.4
2600-8MHP-20 260020.005.4
2600-8MHP-30 260030.005.4
2600-8MHP-50 260050.005.4
2600-8MHP-85 260085.005.4
2800-8MHP-20 280020.005.4
2800-8MHP-30 280030.005.4
2800-8MHP-50 280050.005.4
2800-8MHP-85 280085.005.4
3280-8MHP-20 328020.005.4
3280-8MHP-30 328030.005.4
3280-8MHP-50 328050.005.4
3280-8MHP-85 328085.005.4


Downloads for more information

OMEGA HP Brochure
pdf
2 MB
OMEGA HP Product Information
pdf
212 KB
Timing Belts Brochure
pdf
1 MB
Applications Refrigeration
pdf
1 MB
Compact Catalogue - Power Transmission
pdf
17 MB
Technical Manual: Timing belts
pdf
15 MB


Product data sheets

Profile 14M
pdf
61 KB
Profile 14M EPDM
pdf
61 KB
Profile 3M
pdf
61 KB
Profile 5M
pdf
61 KB
Profile 8M
pdf
61 KB

Product images

Get in contact with us

optibelt NEWSSOURCE

Have the latest information sent to you each month.


Sign up

Illinois (Headquarters)

1580 W. Stearns Rd.
Bartlett, IL 60103

Phone: 630-628-8400
E-mail: info[at]optibelt-usacom
