Features for improved performance

VERSATILE
Capable of handling a wide variety or applications.

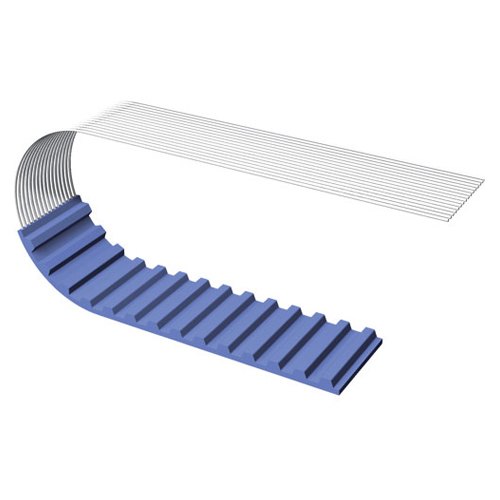

CORDS
Stainless Steel and aramid cord also available, minimum quantities apply.

STRENGTH
High tensile strength with low elongation.

VERSATILE
Capable of handling a wide variety or applications.

VERSION
ATL version timing belts for linear drives.

ROLL LENGTHS
Standard roll lengths are 50m and 100m; lengths greater than 100m are available.

Simply add items to your cart, select a distributor, and enter your information. The selected distributor will contact you with pricing, and/or complete your order.

Part #Section WidthSection Height
14M25-ST 25.0010
14M40-ST 40.0010
14M55-ST 55.0010
14M85-ST 85.0010
14M100-ST 100.0010
14M150-ST 150.0010
Part #Section WidthSection Height
5M10-ST 10.003.6
5M15-ST 15.003.6
5M20-ST 20.003.6
5M25-ST 25.003.6
5M50-ST 50.003.6
Part #Section WidthSection Height
8M20-ST 20.005.6
8M25-ST 25.005.6
8M30-ST 30.005.6
8M50-ST 50.005.6
8M85-ST 85.005.6
8M100-ST 100.005.6
Part #Section WidthSection Height
16AT10-ST 16.004.5
25AT10-ST 25.004.5
32AT10-ST 32.004.5
50AT10-ST 50.004.5
75AT10-ST 75.004.5
100AT10-ST 100.004.5
150AT10-ST 150.004.5
Part #Section WidthSection Height
100AT10K13-ST 100.004.5
32AT10K13-ST 32.004.5
50AT10K13-ST 50.004.5
75AT10K13-ST 75.004.5
Part #Section WidthSection Height
25AT10K6-ST 25.004.5
32AT10K6-ST 32.004.5
50AT10K6-ST 50.004.5
75AT10K6-ST 75.004.5
100AT10K6-ST 100.004.5
Part #Section WidthSection Height
25AT20-ST 25.008
32AT20-ST 32.008
50AT20-ST 50.008
75AT20-ST 75.008
100AT20-ST 100.008
150AT20-ST 150.008
Part #Section WidthSection Height
6AT5-ST 6.002.7
10AT5-ST 10.002.7
16AT5-ST 16.002.7
25AT5-ST 25.002.7
32AT5-ST 32.002.7
50AT5-ST 50.002.7
75AT5-ST 75.002.7
100AT5-ST 100.002.7
Part #Section WidthSection Height
25ATL10-ST 25.004.5
32ATL10-ST 32.004.5
50ATL10-ST 50.004.5
75ATL10-ST 75.004.5
100ATL10-ST 100.004.5
150ATL10-ST 150.004.5
Part #Section WidthSection Height
25ATL20-ST 25.008
32ATL20-ST 32.008
50ATL20-ST 50.008
75ATL20-ST 75.008
100ATL20-ST 100.008
150ATL20-ST 150.008
Part #Section WidthSection Height
16ATL5-ST 16.002.7
25ATL5-ST 25.002.7
32ATL5-ST 32.002.7
50ATL5-ST 50.002.7
75ATL5-ST 75.002.7
100ATL5-ST 100.002.7
Part #Section WidthSection Height
H050-AR 12.704
H075-AR 19.104
H100-AR 25.404
H150-AR 38.104
H200-AR 50.804
H300-AR 76.204
H400-AR 101.604
H050-ST 12.704
H075-ST 19.104
H100-ST 25.404
H150-ST 38.104
H200-ST 50.804
H300-ST 76.204
H400-ST 101.604
Part #Section WidthSection Height
L037-AR 9.503.6
L050-AR 12.703.6
L075-AR 19.103.6
L100-AR 25.403.6
L150-AR 38.103.6
L200-AR 50.803.6
L037-ST 9.503.6
L050-ST 12.703.6
L075-ST 19.103.6
L100-ST 25.403.6
L150-ST 38.103.6
L200-ST 50.803.6
L300-ST 76.203.6
L400-ST 101.603.6
Part #Section WidthSection Height
10T10-AR 10.004.5
12T10-AR 12.004.5
16T10-AR 16.004.5
20T10-AR 20.004.5
25T10-AR 25.004.5
32T10-AR 32.004.5
40T10-AR 40.004.5
50T10-AR 50.004.5
75T10-AR 75.004.5
100T10-AR 100.004.5
10T10-ST 10.004.5
12T10-ST 12.004.5
16T10-ST 16.004.5
20T10-ST 20.004.5
25T10-ST 25.004.5
32T10-ST 32.004.5
40T10-ST 40.004.5
50T10-ST 50.004.5
75T10-ST 75.004.5
100T10-ST 100.004.5
150T10-ST 150.004.5
Part #Section WidthSection Height
32T10K13-ST 32.004.5
50T10K13-ST 50.004.5
75T10K13-ST 75.004.5
100T10K13-ST 100.004.5
Part #Section WidthSection Height
25T20-AR 258
32T20-AR 328
50T20-AR 508
75T20-AR 758
100T20-AR 1008
25T20-ST 25.008
32T20-ST 32.008
50T20-ST 50.008
75T20-ST 75.008
100T20-ST 100.008
150T20-ST 150.008
Part #Section WidthSection Height
6T5-AR 6.002.2
8T5-AR 8.002.2
10T5-AR 10.002.2
12T5-AR 12.002.2
16T5-AR 16.002.2
20T5-AR 20.002.2
25T5-AR 25.002.2
32T5-AR 32.002.2
50T5-AR 50.002.2
6T5-ST 6.002.2
8T5-ST 8.002.2
10T5-ST 10.002.2
12T5-ST 12.002.2
16T5-ST 16.002.2
20T5-ST 20.002.2
25T5-ST 25.002.2
32T5-ST 32.002.2
50T5-ST 50.002.2
75T5-ST 75.002.2
100T5-ST 100.002.2
Part #Section WidthSection Height
25T5K6-ST 25.002.2
32T5K6-ST 32.002.2
50T5K6-ST 50.002.2
75T5K6-ST 75.002.2
100T5K6-ST 100.002.2
25T10K6-ST 25.004.5
32T10K6-ST 32.004.5
50T10K6-ST 50.004.5
75T10K6-ST 75.004.5
100T10K6-ST 100.004.5
Part #Section WidthSection Height
XH100-ST 25.4011.2
XH200-ST 50.8011.2
XH300-ST 76.2011.2
XH400-ST 101.6011.2
Part #Section WidthSection Height
XL025-AR 6.402.3
XL031-AR 7.902.3
XL037-AR 9.502.3
XL050-AR 12.702.3
XL075-AR 19.102.3
XL100-AR 25.402.3
