optibelt TIMING BELT PULLEYS

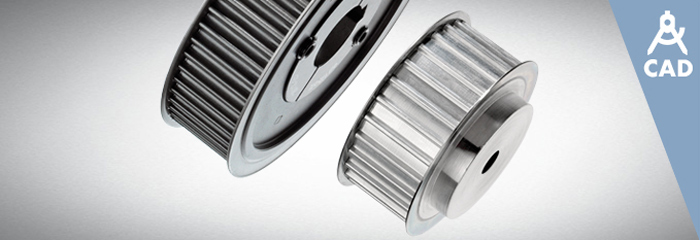

optibelt ZRS timing belt pulleys for taper bushings and cylindrical bores. Special pulleys according to drawing, description or samples on request.

Download product data sheets, 2D drawings and 3D models quickly and easily with our CAD service tool. Click here for the CAD Service Tool.

Sections and lengths
TB 5M 34-150 / 15 mm
TB 8M/8M 22-192 / 20-85 mm
TB 14M/14M 28-216 / 40-170 mm
3M 10-72 / 6-15 mm
5M 12-72 / 9-25 mm
TB 8MDC 25-192 / 12-62 mm
8MDC 22-38 / 12-62 mm
T2,5 12-60 / 4 und 6 mm
T5 10-60 / 10-25 mm
T10 12-60 / 16-50 mm
AT5 12-60 / 10-25 mm
AT10 15-60 / 16-50 mm
TB L 18-120 / 050-100
TB H 16-120 / 100-300
TB XH 18-48 / 200-400
XL 10-72 / 025, 031 und 037
L 10-84 / 050 - 100
H 14-120 / 075-300
XH 18-96 / 200-400

Product downloads

Metal Solutions Brochure
pdf
3 MB
Compact Catalogue - Power Transmission
pdf
17 MB
Product information - optibelt ZRS Timing Belt Pulleys for Plain Boring
pdf
1 MB
Product information - optibelt ZRS Timing Belt Pulleys for Taper Bushings
pdf
1 MB
Product information - optibelt ZRS Metric Timing Belt Pulleys for Plain Boring
pdf
1','009 KB
Product information - optibelt ZRS DELTA CHAIN Pulleys for Taper Bushings Profile 8MDC
pdf
822 KB
Product information - optibelt ZRS HTD Pulleys for Plain Boring
pdf
1 MB
Product information - optibelt ZRS HTD Pulleys for Taper Bushings
pdf
1 MB

Simply add items to your cart, select a distributor, and enter your information. The selected distributor will contact you with pricing, and/or complete your order.

View cart (0)
Part #Bush SizeWeight (lb)PitchBelt WidthTeeth #
TB 28-14M-40 20124.4114mm4028
TB 29-14M-40 20125.2514mm4029
TB 30-14M-40 20125.8414mm4030
TB 32-14M-40 20127.5014mm4032
TB 34-14M-40 25178.5314mm4034
TB 36-14M-40 251710.5814mm4036
TB 38-14M-40 251711.9014mm4038
TB 40-14M-40 251713.2314mm4040
TB 44-14M-40 302017.2014mm4044
TB 48-14M-40 302020.7214mm4048
TB 56-14M-40 302023.8114mm4056
TB 64-14M-40 302029.5414mm4064
TB 72-14M-40 302033.5114mm4072
TB 80-14M-40 302035.2714mm4080
TB 90-14M-40 302039.2414mm4090
TB 112-14M-40 302056.4414mm40112
TB 144-14M-40 302072.7514mm40144
TB 168-14M-40 302097.0014mm40168
TB 192-14M-40 3020108.0314mm40192
TB 216-14M-40 3020121.2514mm40216
TB 28-14M-55 20124.8514mm5528
TB 29-14M-55 20126.0414mm5529
TB 30-14M-55 25175.9514mm5530
TB 32-14M-55 25178.0714mm5532
TB 34-14M-55 251710.0314mm5534
TB 36-14M-55 251711.4614mm5536
TB 38-14M-55 251713.6714mm5538
TB 40-14M-55 251715.4314mm5540
TB 44-14M-55 302018.9614mm5544
TB 48-14M-55 302022.9314mm5548
TB 56-14M-55 302027.3414mm5556
TB 64-14M-55 302031.9714mm5564
TB 72-14M-55 302035.7114mm5572
TB 80-14M-55 302038.5814mm5580
TB 90-14M-55 302044.0914mm5590
TB 112-14M-55 302062.6114mm55112
TB 144-14M-55 302079.8114mm55144
TB 168-14M-55 3020108.0314mm55168
TB 192-14M-55 302079.8114mm55192
TB 216-14M-55 3535151.6814mm55216
TB 28-14M-85 25175.9514mm8528
TB 29-14M-85 25177.5014mm8529
TB 30-14M-85 25178.2714mm8530
TB 32-14M-85 251710.5814mm8532
TB 34-14M-85 251713.2314mm8534
TB 36-14M-85 302012.7914mm8536
TB 38-14M-85 302014.9914mm8538
TB 40-14M-85 302017.6414mm8540
TB 44-14M-85 303026.0114mm8544
TB 48-14M-85 303033.2914mm8548
TB 56-14M-85 352549.6014mm8556
TB 64-14M-85 352557.3214mm8564
TB 72-14M-85 352556.2214mm8572
TB 80-14M-85 352564.3714mm8580
TB 90-14M-85 352567.9014mm8590
TB 112-14M-85 352587.0814mm85112
TB 144-14M-85 3525112.4314mm85144
TB 168-14M-85 3525134.4814mm85168
TB 192-14M-85 4040189.6014mm85192
TB 216-14M-85 4040201.7214mm85216
TB 28-14M-115 25178.3114mm11528
TB 29-14M-115 25178.8214mm11529
TB 30-14M-115 251711.0214mm11530
TB 32-14M-115 251714.9914mm11532
TB 34-14M-115 251714.9914mm11534
TB 36-14M-115 302015.4314mm11536
TB 38-14M-115 302018.5214mm11538
TB 40-14M-115 302020.2814mm11540
TB 44-14M-115 303030.8614mm11544
TB 48-14M-115 303037.9214mm11548
TB 56-14M-115 353554.6714mm11556
TB 64-14M-115 353563.9314mm11564
TB 72-14M-115 353563.9314mm11572
TB 80-14M-115 353572.7514mm11580
TB 90-14M-115 353580.4714mm11590
TB 112-14M-115 3535101.4114mm115112
TB 144-14M-115 4040149.9114mm115144
TB 168-14M-115 4040182.1014mm115168
TB 192-14M-115 4040211.6414mm115192
TB 216-14M-115 4040235.8914mm115216
TB 38-14M-170 303025.7914mm17038
TB 40-14M-170 303028.6614mm17040
TB 44-14M-170 353533.0714mm17044
TB 48-14M-170 353566.8914mm17048
TB 56-14M-170 353562.8314mm17056
TB 64-14M-170 404090.3914mm17064
TB 72-14M-170 4040103.4014mm17072
TB 80-14M-170 4040105.8214mm17080
TB 90-14M-170 4040115.7414mm17090
TB 112-14M-170 5050164.2414mm170112
TB 144-14M-170 5050200.6214mm170144
TB 168-14M-170 5050255.7314mm170168
TB 192-14M-170 5050267.4214mm170192
TB 216-14M-170 5050300.8214mm170216
Part #Bush SizeWeight (lb)PitchBelt WidthTeeth #
TB 34-5M-15 10080.425mm1534
TB 36-5M-15 11080.445mm1536
TB 38-5M-15 11080.555mm1538
TB 40-5M-15 11080.685mm1540
TB 44-5M-15 11080.885mm1544
TB 48-5M-15 12100.995mm1548
TB 56-5M-15 12101.485mm1556
TB 64-5M-15 12102.125mm1564
TB 72-5M-15 16102.625mm1572
TB 80-5M-15 16103.465mm1580
TB 90-5M-15 16102.535mm1590
TB 112-5M-15 16104.285mm15112
TB 136-5M-15 20126.755mm15136
TB 150-5M-15 20128.605mm15150
Part #Bush SizeWeight (lb)PitchBelt WidthTeeth #
TB 22-8M-20 10080.538mm2022
TB 24-8M-20 11080.668mm2024
TB 26-8M-20 11080.798mm2026
TB 28-8M-20 11080.978mm2028
TB 30-8M-20 11081.178mm2030
TB 32-8M-20 16100.938mm2032
TB 34-8M-20 16101.218mm2034
TB 36-8M-20 16101.508mm2036
TB 38-8M-20 16101.768mm2038
TB 40-8M-20 16102.208mm2040
TB 44-8M-20 20122.658mm2044
TB 48-8M-20 20123.538mm2048
TB 56-8M-20 20125.298mm2056
TB 64-8M-20 20125.958mm2064
TB 72-8M-20 20127.288mm2072
TB 80-8M-20 20127.728mm2080
TB 90-8M-20 20128.058mm2090
TB 22-8M-30 10080.648mm3022
TB 24-8M-30 11080.848mm3024
TB 26-8M-30 11080.998mm3026
TB 28-8M-30 12101.218mm3028
TB 30-8M-30 16150.998mm3030
TB 32-8M-30 16151.308mm3032
TB 34-8M-30 16151.708mm3034
TB 36-8M-30 16152.128mm3036
TB 38-8M-30 16152.548mm3038
TB 40-8M-30 16152.958mm3040
TB 44-8M-30 20122.938mm3044
TB 48-8M-30 20123.928mm3048
TB 56-8M-30 20128.298mm3056
TB 64-8M-30 25179.268mm3064
TB 72-8M-30 25179.488mm3072
TB 80-8M-30 251710.148mm3080
TB 90-8M-30 251711.028mm3090
TB 112-8M-30 251713.678mm30112
TB 144-8M-30 251720.288mm30144
TB 28-8M-50 12101.688mm5028
TB 30-8M-50 16151.438mm5030
TB 32-8M-50 16151.818mm5032
TB 34-8M-50 16152.348mm5034
TB 36-8M-50 16152.878mm5036
TB 38-8M-50 16153.538mm5038
TB 40-8M-50 20122.658mm5040
TB 44-8M-50 20123.778mm5044
TB 48-8M-50 20125.078mm5048
TB 56-8M-50 25177.508mm5056
TB 64-8M-50 251711.028mm5064
TB 72-8M-50 251714.778mm5072
TB 80-8M-50 302019.408mm5080
TB 90-8M-50 302019.408mm5090
TB 112-8M-50 302026.468mm50112
TB 144-8M-50 302033.518mm50144
TB 168-8M-50 352536.168mm50168
TB 192-8M-50 352548.068mm50192
TB 34-8M-85 16152.958mm8534
TB 36-8M-85 16154.128mm8536
TB 38-8M-85 16154.858mm8538
TB 40-8M-85 20123.928mm8540
TB 44-8M-85 20125.078mm8544
TB 48-8M-85 25175.868mm8548
TB 56-8M-85 25179.818mm8556
TB 64-8M-85 251714.778mm8564
TB 72-8M-85 302017.648mm8572
TB 80-8M-85 302022.058mm8580
TB 90-8M-85 302023.818mm8590
TB 112-8M-85 302033.078mm85112
TB 144-8M-85 352548.508mm85144
TB 168-8M-85 352550.718mm85168
TB 192-8M-85 352562.838mm85192
Part #Bush SizeWeight (lb)PitchBelt WidthTeeth #
TB 16-H-100 11080.881/2 in116
TB 18-H-100 12101.101/2 in118
TB 19-H-100 12101.321/2 in119
TB 20-H-100 12101.541/2 in120
TB 21-H-100 12101.761/2 in121
TB 22-H-100 12101.981/2 in122
TB 23-H-100 16101.981/2 in123
TB 24-H-100 16102.201/2 in124
TB 25-H-100 16102.201/2 in125
TB 26-H-100 16102.651/2 in126
TB 27-H-100 16102.871/2 in127
TB 28-H-100 16103.311/2 in128
TB 30-H-100 16103.751/2 in130
TB 32-H-100 16104.411/2 in132
TB 36-H-100 16105.951/2 in136
TB 40-H-100 16107.941/2 in140
TB 44-H-100 20128.381/2 in144
TB 48-H-100 20127.051/2 in148
TB 60-H-100 201210.581/2 in160
TB 72-H-100 201212.571/2 in172
TB 84-H-100 201214.991/2 in184
TB 96-H-100 251718.081/2 in196
TB 120-H-100 251726.681/2 in1120
TB 18-H-150 12101.321/2 in1.518
TB 19-H-150 12101.541/2 in1.519
TB 20-H-150 12101.761/2 in1.520
TB 21-H-150 12102.201/2 in1.521
TB 22-H-150 12102.651/2 in1.522
TB 23-H-150 16102.871/2 in1.523
TB 24-H-150 16102.651/2 in1.524
TB 25-H-150 16102.651/2 in1.525
TB 26-H-150 16103.091/2 in1.526
TB 27-H-150 16103.531/2 in1.527
TB 28-H-150 16103.971/2 in1.528
TB 30-H-150 16104.411/2 in1.530
TB 32-H-150 16105.071/2 in1.532
TB 36-H-150 16106.831/2 in1.536
TB 40-H-150 16108.821/2 in1.540
TB 44-H-150 20129.701/2 in1.544
TB 48-H-150 201210.581/2 in1.548
TB 60-H-150 201211.901/2 in1.560
TB 72-H-150 201214.331/2 in1.572
TB 84-H-150 201218.521/2 in1.584
TB 96-H-150 251724.251/2 in1.596
TB 120-H-150 251732.631/2 in1.5120
TB 18-H-200 12101.761/2 in218
TB 19-H-200 16101.981/2 in219
TB 20-H-200 16102.201/2 in220
TB 21-H-200 16103.751/2 in221
TB 22-H-200 16103.311/2 in222
TB 23-H-200 16103.971/2 in223
TB 24-H-200 16103.311/2 in224
TB 25-H-200 16103.311/2 in225
TB 26-H-200 16103.971/2 in226
TB 27-H-200 16104.191/2 in227
TB 28-H-200 16104.191/2 in228
TB 30-H-200 16105.071/2 in230
TB 32-H-200 20126.611/2 in232
TB 36-H-200 20126.611/2 in236
TB 40-H-200 20127.941/2 in240
TB 44-H-200 20129.921/2 in244
TB 48-H-200 251710.141/2 in248
TB 60-H-200 251715.431/2 in260
TB 72-H-200 251717.641/2 in272
TB 84-H-200 251719.841/2 in284
TB 96-H-200 251725.351/2 in296
TB 120-H-200 251733.951/2 in2120
TB 20-H-300 16153.311/2 in320
TB 21-H-300 16152.651/2 in321
TB 22-H-300 16153.531/2 in322
TB 23-H-300 16153.971/2 in323
TB 24-H-300 16154.631/2 in324
TB 25-H-300 16154.411/2 in325
TB 26-H-300 16155.951/2 in326
TB 27-H-300 20126.611/2 in327
TB 28-H-300 20125.291/2 in328
TB 30-H-300 20126.391/2 in330
TB 32-H-300 25177.281/2 in332
TB 36-H-300 25179.921/2 in336
TB 40-H-300 251713.231/2 in340
TB 44-H-300 251714.551/2 in344
TB 48-H-300 251716.751/2 in348
TB 60-H-300 251718.521/2 in360
TB 72-H-300 251722.931/2 in372
TB 84-H-300 251727.561/2 in384
TB 96-H-300 303031.311/2 in396
TB 120-H-300 303041.451/2 in3120
Part #Bush SizeWeight (lb)PitchBelt WidthTeeth #
TB 18-L-050 11080.443/8 in0.518
TB 19-L-050 11080.443/8 in0.519
TB 20-L-050 11080.443/8 in0.520
TB 21-L-050 11080.663/8 in0.521
TB 22-L-050 11080.663/8 in0.522
TB 23-L-050 11080.883/8 in0.523
TB 24-L-050 11080.883/8 in0.524
TB 25-L-050 11081.103/8 in0.525
TB 26-L-050 11081.103/8 in0.526
TB 27-L-050 11081.323/8 in0.527
TB 28-L-050 11081.323/8 in0.528
TB 30-L-050 11081.763/8 in0.530
TB 32-L-050 11081.983/8 in0.532
TB 36-L-050 11082.653/8 in0.536
TB 40-L-050 16106.613/8 in0.540
TB 48-L-050 16105.073/8 in0.548
TB 60-L-050 16104.413/8 in0.560
TB 72-L-050 16106.613/8 in0.572
TB 84-L-050 16108.823/8 in0.584
TB 96-L-050 201212.133/8 in0.596
TB 120-L-050 201214.993/8 in0.5120
TB 18-L-075 11080.443/8 in0.7518
TB 19-L-075 11080.663/8 in0.7519
TB 20-L-075 11080.663/8 in0.7520
TB 21-L-075 11080.883/8 in0.7521
TB 22-L-075 11080.883/8 in0.7522
TB 23-L-075 11080.883/8 in0.7523
TB 24-L-075 11081.103/8 in0.7524
TB 25-L-075 11081.323/8 in0.7525
TB 26-L-075 11081.323/8 in0.7526
TB 27-L-075 11081.543/8 in0.7527
TB 28-L-075 11081.543/8 in0.7528
TB 30-L-075 11081.983/8 in0.7530
TB 32-L-075 11082.203/8 in0.7532
TB 36-L-075 16102.653/8 in0.7536
TB 40-L-075 16103.753/8 in0.7540
TB 48-L-075 16105.513/8 in0.7548
TB 60-L-075 16106.613/8 in0.7560
TB 72-L-075 16108.823/8 in0.7572
TB 84-L-075 201211.463/8 in0.7584
TB 96-L-075 201214.333/8 in0.7596
TB 120-L-075 201216.753/8 in0.75120
TB 18-L-100 11080.443/8 in118
TB 19-L-100 11080.663/8 in119
TB 20-L-100 11080.883/8 in120
TB 21-L-100 11080.883/8 in121
TB 22-L-100 11080.883/8 in122
TB 23-L-100 11081.103/8 in123
TB 24-L-100 11081.323/8 in124
TB 25-L-100 11081.323/8 in125
TB 26-L-100 11081.543/8 in126
TB 27-L-100 11081.763/8 in127
TB 28-L-100 11081.763/8 in128
TB 30-L-100 12101.983/8 in130
TB 32-L-100 12102.203/8 in132
TB 36-L-100 16103.093/8 in136
TB 40-L-100 16103.753/8 in140
TB 48-L-100 16105.953/8 in148
TB 60-L-100 16105.293/8 in160
TB 72-L-100 20129.703/8 in172
TB 84-L-100 201213.233/8 in184
TB 96-L-100 201215.653/8 in196
TB 120-L-100 201218.743/8 in1120


Get in contact with us

optibelt NEWSSOURCE

Have the latest information sent to you each month.


Sign up

Illinois (Headquarters)

1580 W. Stearns Rd.
Bartlett, IL 60103

Phone: 630-628-8400
E-mail: info[at]optibelt-usacom
